Geomagic Capture®

The ultra-compact 3D scanner
Geomagic Capture®

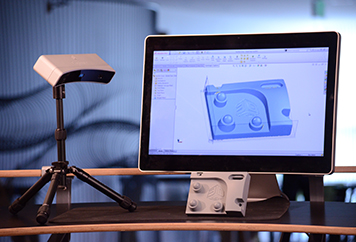

Bring physical objects directly into CAD, supercharge your product development process, and automate precise 3D inspection with Geomagic Capture - the powerful, integrated, industrial-grade 3D scanner and software system.

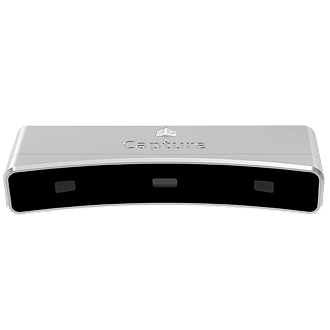

The Capture scanners from 3D Systems deliver accurate and fast blue light 3D scanning technology in a portable, lightweight unit that can be hand-held, static and easily combined into a multi-scanner configuration. With the optional ProPack, you can seamlessly add the turntable functions and transport your scanner safely in a high-quality case. The Capture comes in two models, the Capture and Capture Mini, which are integrated with Geomagic reverse engineering software and 3D inspection software for rapid and highly accurate scan-to-3D processes.

Get to Market Faster with the 3D Digital Thread

Streamline your workflow, incorporate quality inspection and deliver products to market faster with the power of 3D Systems' complete digital thread. Geomagic Capture delivers a bridge between physical parts and digital software tools for rapid design, engineering, production and quality control. Bring physical objects to CAD, recreate lost or damaged design files, verify dimensions, prepare for 3D printing and manufacture confidently.

Rapidly Recover Lost Design Data

Lost design data? Have an old part with no drawings? Geomagic Capture lets you quickly and easily recreate 3D CAD data for highly complex and broken parts in one seamless scan-based design workflow. From there, you can go directly to 3D printing and manufacturing.

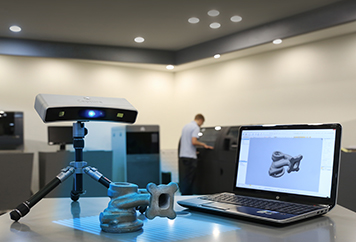

Scan Faster with Multi-Capture Scanning

Quickly set up a multi-Capture array, and you can scan and process accurate 3D data even faster. The software's advanced automation and scripting tools make repetitive inspections easier than ever.

Reduce Costs and Increase Efficiency

Complete Geomagic Capture systems, including integrated Geomagic software, cost less than other professional 3D scanners. For the first time, you can get the accuracy, the scanning envelope and the advanced software you need from a single vendor.

Design from the World Around You

Geomagic Capture ushers in a new design paradigm where existing objects provide inspiration for innovative new products. Improve upon, learn from, customize and reuse the designs that surround you every day with a 3D scanner for CAD.

Enhance Your Scanning with the Geomagic Capture ProPack

The Geomagic Capture ProPack gives you the power of portable hands-free 360° scanning. This all-in-one addition to your Geomagic Capture scanning experience includes a powered, fully automated rotary turntable plus fixturing arms to hold your parts in place. It's secured in a form-fitting hard case that has spaces to include your Geomagic Capture scanner and tripod.

Technical Specifications

Dimensions 276 × 74 × 49 mm
Weight 1.35 kg
Resolution 0.110 mm at 300 mm, 0.180 mm at 480 mm
Accuracy 0.060 mm
Data Capture Rate 985,000 points/scan (0.3 sec per scan)
Computer Requirements Windows 7/8 (64-bit) Operating System, Intel and AMD Quad-core 2-GHz CPU or better, Gigabit Ethernet interface, 4 GB Memory or greater, 512 MB Video Card or better
