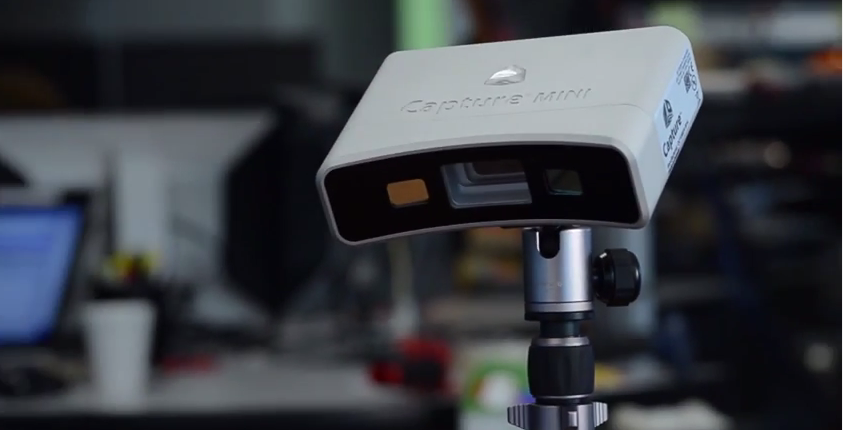

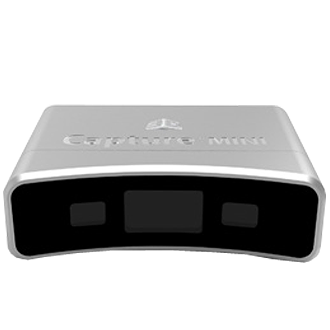

Geomagic Capture® Mini
The ultra-compact 3D scanner
Bring physical objects directly into CAD, supercharge your product development process, and automate precise 3D inspection with Geomagic Capture - the powerful, integrated, industrial-grade 3D scanner and software system.
The Capture scanners from 3D Systems deliver accurate and fast blue light 3D scanning technology in a portable, lightweight unit that can be hand-held, static and easily combined into a multi-scanner configuration. With the optional ProPack, you can seamlessly add the turntable functions and transport your scanner safely in a high-quality case. The Capture comes in two models, the Capture and Capture Mini, which are integrated with Geomagic reverse engineering software and 3D inspection software for rapid and highly accurate scan-to-3D processes.

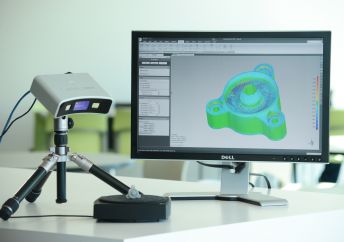

Streamline your workflow, incorporate quality inspection and deliver products to market faster with the power of 3D Systems' complete digital thread. Geomagic Capture delivers a bridge between physical parts and digital software tools for rapid design, engineering, production and quality control. Bring physical objects to CAD, recreate lost or damaged design files, verify dimensions, prepare for 3D printing and manufacture confidently.
Lost design data? Have an old part with no drawings? Geomagic Capture lets you quickly and easily recreate 3D CAD data for highly complex and broken parts in one seamless scan-based design workflow. From there, you can go directly to 3D printing and manufacturing.
Quickly set up a multi-Capture array, and you can scan and process accurate 3D data even faster. The software's advanced automation and scripting tools make repetitive inspections easier than ever.
Complete Geomagic Capture systems, including integrated Geomagic software, cost less than other professional 3D scanners. For the first time, you can get the accuracy, the scanning envelope and the advanced software you need from a single vendor.
Geomagic Capture ushers in a new design paradigm where existing objects provide inspiration for innovative new products. Improve upon, learn from, customize and reuse the designs that surround you every day with a 3D scanner for CAD.
The Geomagic Capture ProPack gives you the power of portable hands-free 360° scanning. This all-in-one addition to your Geomagic Capture scanning experience includes a powered, fully automated rotary turntable plus fixturing arms to hold your parts in place. It's secured in a form-fitting hard case that has spaces to include your Geomagic Capture scanner and tripod.
| Dimensions | 155 × 109 × 49 mm |
|---|---|
| Weight | 1.04 kg |
| Resolution | 0.080 mm at 157 mm, 0.100 mm at 227 mm |
| Accuracy | 0.034 mm |
| Data Capture Rate | 985,000 points/scan (0.3 sec per scan) |
| Computer Requirements | Windows 7/8 (64-bit) Operating System, Intel and AMD Quad-core 2-GHz CPU or better, Gigabit Ethernet interface, 4 GB Memory or greater, 512 MB Video Card or better |
