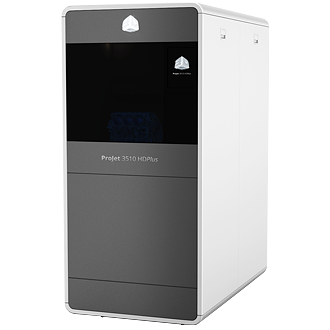

ProJet® 3510 HD plus

Productive, high-capacity ProJet® 3500 professional printers
ProJet® 3510 HD plus

Easily create high-definition, precise plastic functional prototypes and end-use parts

The ProJet® 3500 series of plastic 3D printers are ideal for creating durable, high-definition functional prototypes, rapid tooling such as injection molds and casting patterns, and end-use parts right in your office. This versatile range of workhorse printers is easy to use, with fast print times and easy post-processing. Parts made on ProJet 3500s are beautifully precise, with sharp edges and true-to-CAD fidelity. Efficient material use, low-maintenance operation and a five-year print head warranty means you can print with confidence and keep costs down. Using 3D Systems’ MultiJet Printing (MJP) technology and VisiJet® M3 performance engineered materials, ProJet 3500s print in hard ABS-like plastics in a variety of colors, tensile strengths and other properties to match your application—including clear and biocompatible parts. You can even print sacrificial patterns in precision-castable plastics.

Technical Specifications

Build Materials VisiJet M3-X
VisiJet M3 Black
VisiJet M3 Crystal
VisiJet M3 Proplast
VisiJet M3 Navy
VisiJet M3 Techplast
VisiJet M3 Procast
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows XP Professional, Windows Vista, Windows 7
Client Hardware Recommendation 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Net Build Volume (xyz)
HD Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
UHD Mode 8 × 7 × 6 “ (203 × 178 × 152 mm)
Resolution (xyz)
HD Mode 375 × 375 × 790 DPI (xyz); 32μ layers
Support Material VisiJet S300
Printing Modes HD - High Definition
UHD - Ultra High Definition
XHD - Xtreme High Definition
Net Build Volume (xyz)
XHD Mode 750 × 750 × 1600 DPI (xyz); 16μ layers
Accuracy (typical) 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension.
Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
5-Year Printhead Warranty Optional
ProJet® Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
Material Packaging
Build and support materials In clean 4.41 lbs (2 kg) bottles (machine holds up to 2 with auto-switching)
Dimensions (W×D×H)
3D Printer Crated 32.5 × 56.25 × 68.5 in
(826 × 1429 × 1740 mm)
3D Printer Uncrated 29.5 × 47 × 59.5 in
(749 × 1194 × 1511 mm)
Weight
3D Printer Crated 955 lbs, 434 kg
3D Printer Uncrated 711 lbs, 323 kg
Input Data File Formats Supported STL and SLC
Operating Temperature Range 64-82 ºF (18-28 ºC)
Electrical 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
* Requires small external transformer supplied by 3D Systems in the provided country kit.
