ProJet™ 3510 CP

Productive, high-capacity ProJet® 3500 professional printers

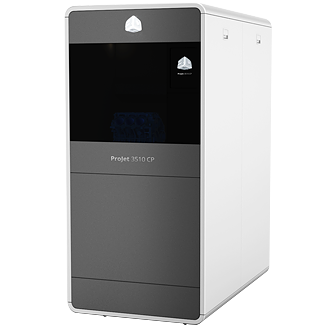

ProJet™ 3510 CP

Easy connectivity and high productivity with high resolution and accuracy

The ProJet™ 3510 CP is transforming 3D printing of complex direct investment casting patterns. This 3D printer produces superior 100 % RealWax patterns that are ideal for general foundry casting applications such as medium- to large-sized mechanical parts, pneumatics, aerospace, energy, custom manufacturing equipment, restorations and other heavy equipment.

Technical Specifications

Build Materials VisiJet M3 Prowax
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows XP Professional, Windows Vista, Windows 7
Client Hardware Recommendation 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Net Build Volume (xyz)
HD Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
UHD Mode 5 × 7 × 6 “ (127 × 178 × 152 mm)
Resolution (xyz)
HD Mode 375 × 375 × 775 DPI (xyz); 33μ layers
UHD Mode 750 × 750 × 890 DPI (xyz); 29μ layers
Printing Modes HD - High Definition
HDHiQ - High Definition/High Quality
Accuracy (typical) 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
ProJet® Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
HDHiQ Mode 375 × 375 × 775 DPI (xyz); 33μ layers
Material Packaging
Build materials In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching)
Support materials In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching)
Dimensions (W×D×H)
3D Printer Crated 32.5 × 56.25 × 68.5 “
(826 × 1429 × 1740 mm)
3D Printer Uncrated 29.5 × 47 × 59.5 “
(749 × 1194 × 1511 mm)
Weight
3D Printer Crated 955 lbs, 434 kg
3D Printer Uncrated 711 lbs, 323 kg
Input Data File Formats Supported STL
Operating Temperature Range 64-82 ºF (18-28 ºC)
Electrical 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
