Combine the power of vibrant full color with durable plastic materials

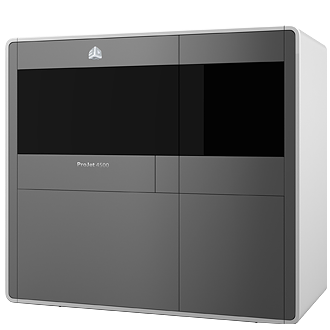

The ProJet® 4500 gives you the power to make ready-to-use, flexible, strong parts, colored pixel by pixel, with superior surface quality. This office-friendly 3D printer is quick and efficient, and features intuitive operation controls, so you can ensure high productivity and cut operating costs.

Combine outer beauty with inner toughness and have durable, full-color plastic parts right out of the printer from the ProJet® 4500. Using ColorJet printing technology and the VisiJet®C4 Spectrum™ plastic material, the ProJet® 4500 allows you to quickly create true-to-life prototypes of your end product, accurately display vital features, and produce highresolution, customized end-use products.

Technical Specifications

Net Build Volume (xyz) 8 × 10 × 8 in (640 in3) 203.2 × 254 × 203.2 mm (10,487 cm3)*
Layer Thickness 0.004 in (0.1 mm)
Vertical Build Speed 0.3 in/hour (8 mm/hour)
Color Continuous CMY
Minimum Feature Size 0.004 in (0.1 mm)
Prototypes per Build* 18 models, 75 mm in diameter
Build Materials VisiJet C4 Spectrum
Integrated Materials Yes
Intuitive Control Panel Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows® 7 and Windows® Vista
Operating Humidity Range 20-55 % - non-cond.
Office Compatibility Yes
Automated Setup and Self Monitoring Yes
Core Recycling Yes
Integrated Part Cleaning Yes
E-mail Notice Capacity Yes
Dimensions (W×D×H)
3D Printer Crated 75 × 48 × 68 in (190 × 122 × 172 cm)
3D Printer Uncrated 64 × 31.5 × 60 in (162 × 80 × 152 cm)
Weight
3D Printer Crated 750 lbs (340 kg)
3D Printer Uncrated 600 lbs (272 kg)
Input Data File Formats Supported STL, VRML, PLY, ZPR
Operating Temperature Range 55-75 °F (13 - 24 °C)
Electrical 100-240 V, 15-7.5 A
Certifications CE, CSA
Resolution 600 × 600 DPI
