ProJet® 460Plus

ProJet® x60 Professional Printers set the standard for true full-color printing

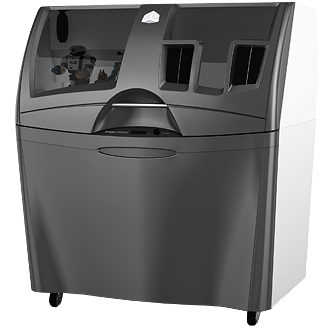

ProJet® 460Plus

Quickly and affordably turn your ideas into full-color 3D printed models

The ProJet® x60 series creates stunningly beautiful, full-color parts like no other 3D printers can. With some of the fastest print speeds available, you can transform your ideas into photo-realistic concept models and prototypes in hours, at a very low cost per part. Communicate better, sell your ideas more effectively, unlock creativity, develop products faster, and close more business. Bring your ideas to life with up to one million unique colors in a single print. Generous build volumes coupled with the unique ability to nest parts horizontally and vertically make these printers perfect for high-throughput applications.

Using 3D Systems’ ColorJet Printing (CJP) technology and the high-performance VisiJet® PXL™ material, ProJet x60s print parts with crisply defined features and precise color, so you can evaluate physical models of design concepts in their nearly finished state. You can print 3D color models so quickly and affordably, you’ll do it every day, just like thousands of others for mechanical design, healthcare, architecture, education, geospatial, entertainment and packaging applications.

Technical Specifications

Net Build Volume (xyz) 8 × 10 × 8 in (203 × 254 × 203 mm)
Layer Thickness 0.004 inches (0.1 mm)
Vertical Build Speed 0.9 inch/hour (20 mm/hour)
Color Full CMY
Minimum Feature Size 0.006 inches (0.15 mm)
Prototypes per Build* 18
Build Materials VisiJet PXL
Number of Jets 604
Number of Print Heads 2
Core™ Recycling Yes
Fine Core™ Removal Integrated
Integrated Materials Yes
Intuitive Control Panel Yes
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows® 7 and Vista®
Operating Humidity Range 20-55 % - non-cond.
Noise
Building 57 dB
Core Recovery 66 dB
Vacuum (open) 86 dB
Fine Decoring 80 dB
Office Compatibility Yes
Automated Setup and Self Monitoring Yes
Dimensions (W×D×H)
3D Printer Crated 55 × 45 × 62 in (140 × 114 × 158 cm)
3D Printer Uncrated 48 × 31 × 55 in (122 × 79 × 140 cm)
Weight
3D Printer Crated 602 lbs (273 kg)
3D Printer Uncrated 425 lbs (193 kg)
Input Data File Formats Supported STL, VRML, PLY, 3DS, FBX, ZPR
Operating Temperature Range 55-75 °F (13 - 24 °C)
Electrical 90-100 V, 7.5 A 110-120 V, 5.5 A 208-240 V, 4.0 A
Certifications CE, CSA
Resolution 300 × 450 dpi
* Based on baseball-size geometry.
