Large, high-quality multi-material parts in a single build.

3D Systems’ ProJet® 5500X uses proven MultiJet Printing (MJP) technology to build the highest quality, most accurate and toughest multi-material parts available. Print finely detailed parts with varying degrees of flexibility, material transparency and colour (black, white, or select shades of grey), all from one 3D printer. The ProJet 5500X features the fastest print speeds, a large build volume, and the most convenient print-to-part process, so it’s easier to create parts with engineered plastic or rubber properties.

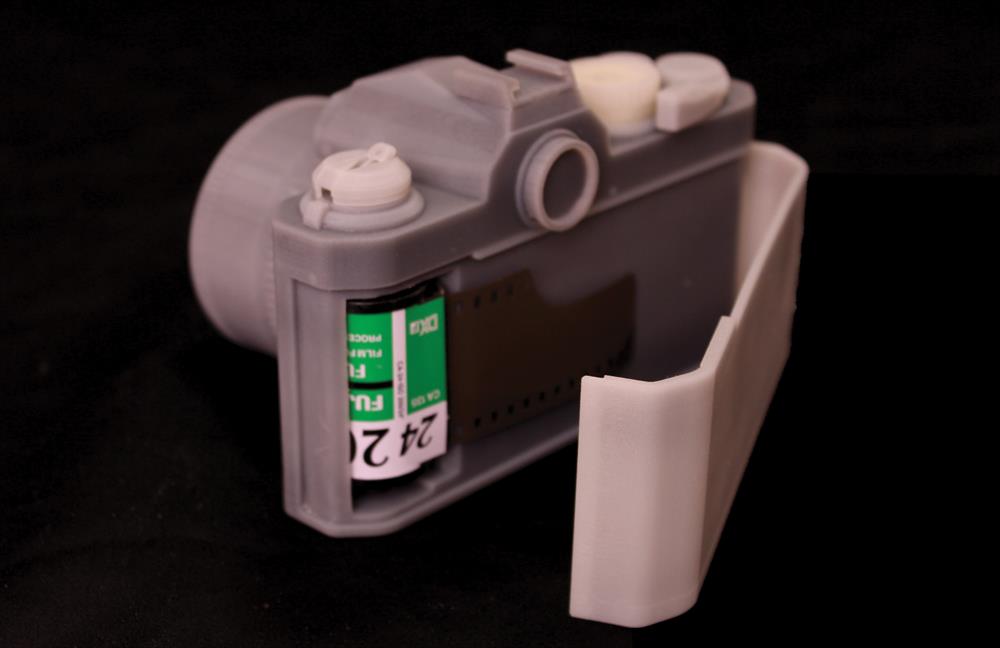

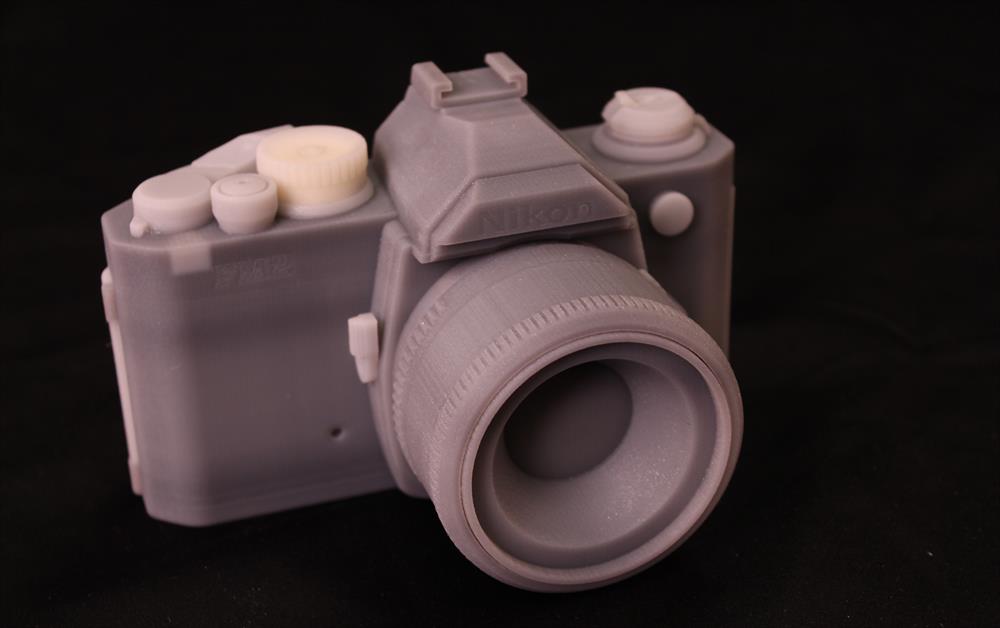

Using VisiJet® Composite materials, the ProJet 5500X offers more than one hundred material variations in a single print to precisely match your specifications. With so many options, the ProJet 5500X is perfect for a variety of applications, including overmoulded parts, multi-material assemblies, rubber-like components, long-lasting living hinges

Technical Specifications

Client Operating System Windows® 7, Windows® 8 or Windows® 8.1
ProJet Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimisation tools Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
Client Hardware Recommendation 1.7 GHz or better with 4GB RAM OpenGL 1.1 Compatible 1280x1024 resolution or better
Net Build Volume (xyz)
HD Mode 21.6 × 15.5 × 11.8 in (550 × 393 × 300 mm)
HDS Mode 21.6 × 15.5 × 11.8 in (550 × 393 × 300 mm)*
UHD Mode 21.6 × 15.5 × 11.8 in (550 × 393 × 300 mm)
Resolution (xyz)
HD Mode 375 × 375 × 790 DPI; 32μ (0.0012 in) layers
HDS Mode 375 × 375 × 790 DPI; 32μ (0.0012 in) layers
UHD Mode 750 × 750 × 890 DPI; 29μ (0.0011 in) layers
Build Materials

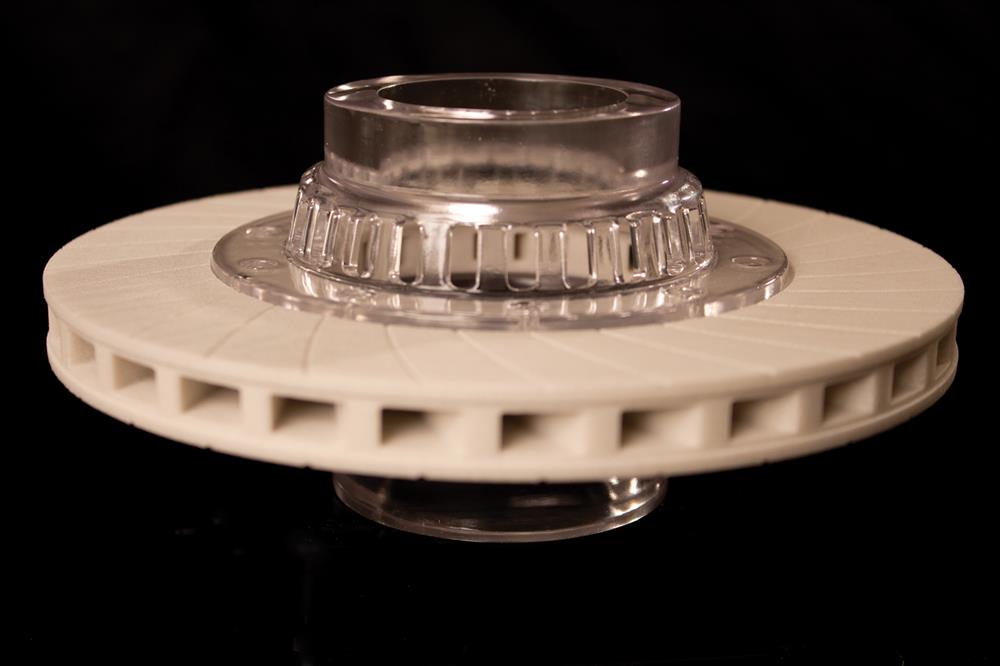

VisiJet® CR-CL Rigid Plastic Material - Clear
VisiJet® CR-WT Rigid Plastic Material - White

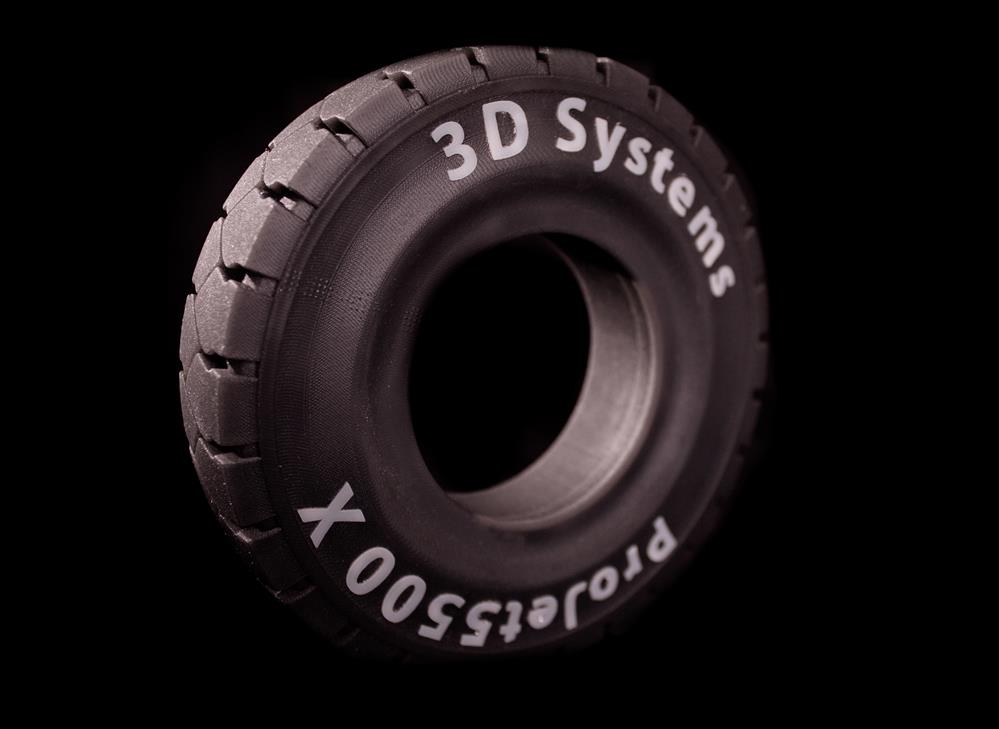

VisiJet® CF-BK Rubber-like Material - Black
Support Material VisiJet® S500 Support Material
Material Packaging Build materials in clean 2.0 kg cartridges and support material in clean 1.75 kg cartridges (printer holds 4 build and 4 support cartridges with auto-switching)
Dimensions (W×D×H)
3D Printer Crated 80 × 48 × 78 in (2032 × 1219 × 1981 mm)
3D Printer Uncrated 67 × 35.4 × 65 in (1700 × 900 × 1650 mm)
Weight
3D Printer Crated 2550 lbs (1157 kg)
3D Printer Uncrated 2060 lbs (934 kg)
Input Data File Formats Supported STL, CTL
Operating Temperature Range 18 - 28 °C (64-82 °F)
Electrical 100 VAC, 50/60 Hz, single-phase, 15 Amps
115 VAC, 50/60 Hz, single-phase, 15 Amps
240 VAC, 50/60 Hz, single-phase, 8 Amps
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
*HDS prints 2x faster than HD for a single material
