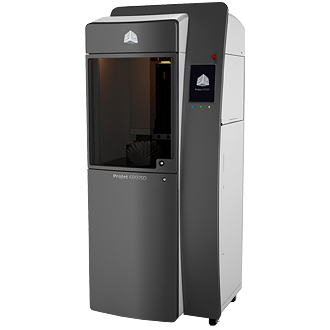

ProJet® 6000 SD
Production 3D Printer
Take advantage of the unrivaled precision, surface quality, range of materials, reliability and speed of Stereolithography at a lower cost with the ProJet® 6000 and 7000 SLA 3D printer series. These highly productive systems offer all the benefits of SLA in a smaller footprint, so you can print parts for prototyping, rapid tooling and end-use with fine feature detail and exceptional mechanical properties, all at a lower per-part cost than other print technologies.
The ProJet 6000 and 7000 print at a resolution equivalent to 4000 DPI*, with more consistent mechanical properties in all three axes than other print technologies. Both systems are available in three models—SD, HD and MP—and in configurations up to 380 × 380 × 250 mm (15 × 15 × 10 in.).

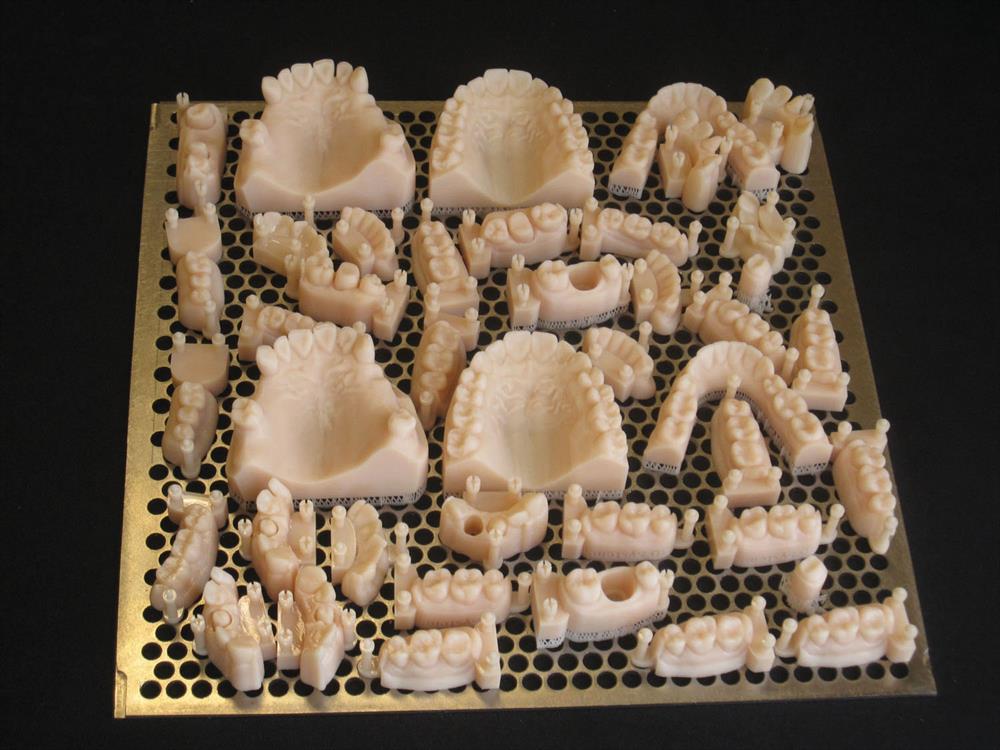

The ProJet 6000 and 7000 use a wide choice of VisiJet® performance-engineered materials that match or exceed traditional plastic properties, including resistance to high temperature, tensile strength and impact strength. VisiJet SL Clear is also USP Class VI certified, making it ideal for medical product manufacturing, especially in mass custom manufacturing projects such as hearing aids and dental applications.
* Equivalent DPI based on laser spot location resolution of 0.00635 mm in 3DS testing
| Material Packaging | Material in clean no drip 2.0 litre cartridges. System auto fills print tray between builds. |
|---|---|
| Dimensions (W×D×H) | |
| 3D Printer Crated | 66 × 35 × 79 in (1676 × 889 × 2006 mm) |
| 3D Printer Uncrated | 31 × 29 × 72 in (787 × 737 × 1829 mm) |
| Weight | |
| 3D Printer Crated | 600 lb (272 kg) |
| 3D Printer Uncrated | 400 lb (181 kg) |
| Input Data File Formats Supported | STL and SLC |
| Operating Temperature Range | 64-82 ºF (18-28 ºC) |
| Electrical | 100-240 VAC, 50/60 Hz, single-phase, 750 W |
| Certifications | CE marked |
| Network Compatibility | Network ready with 10/100 Ethernet interface 4MB |
| Noise | < 65 dBa estimated |
| Net Build Volume (xyz) | |
| Tall | 10 × 10 × 10 in (250 × 250 × 250 mm) |
| Medium | 10 × 10 × 5 in (250 × 250 × 125 mm) |
| Short | 10 × 10 × 2 in (250 × 250 × 50 mm) |
| Resolution | |
| HD - 0.125 mm layers | Yes |
| UHD - 0.100 mm layers | Yes |
| Materials | |

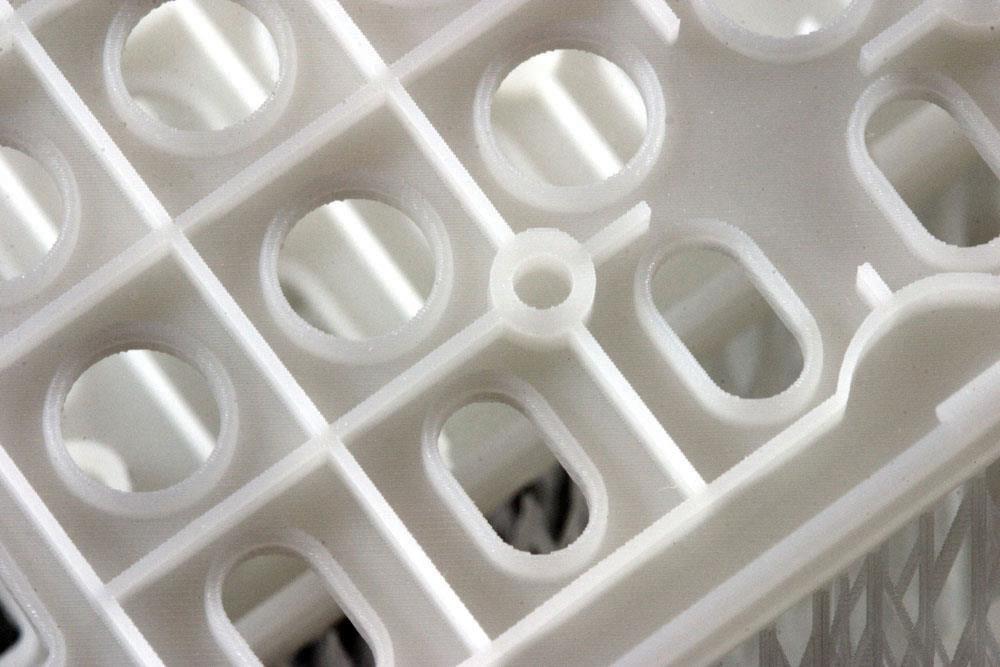

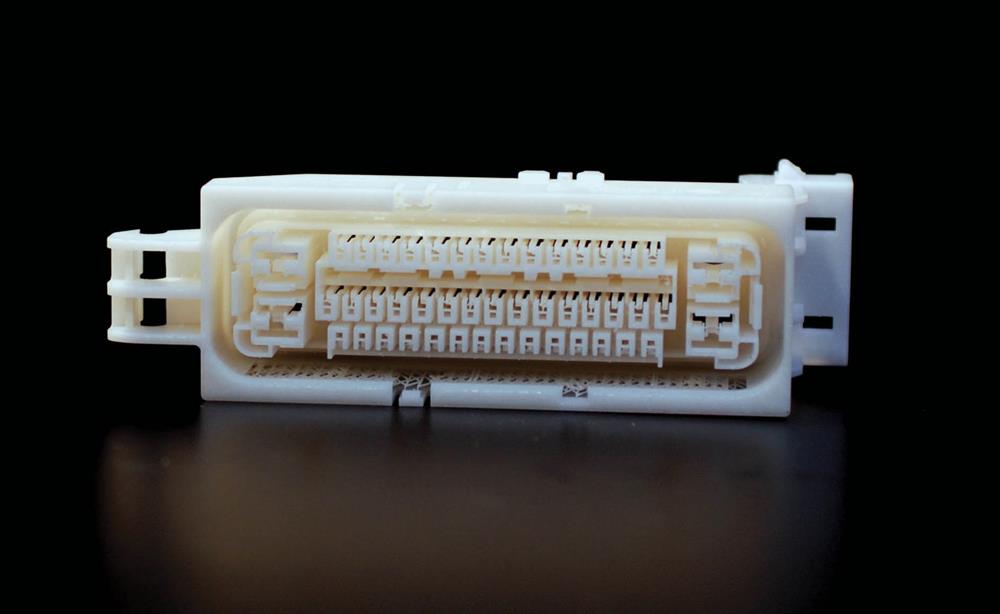

| VisiJet® SL Flex | Yes |

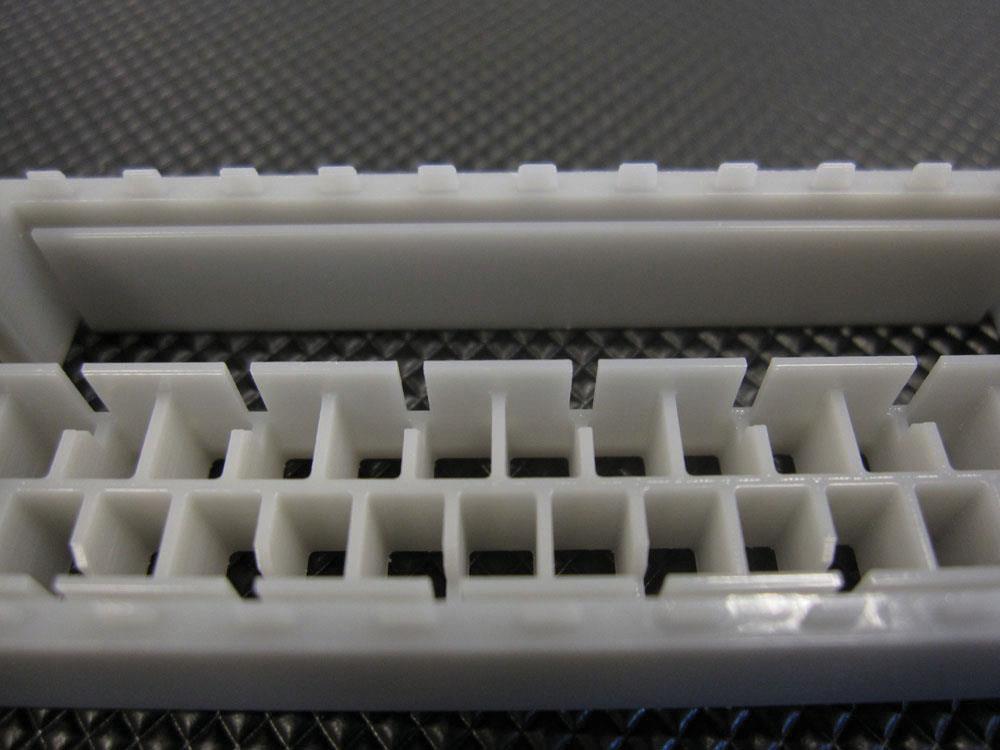

| VisiJet® SL Tough | Yes |
| VisiJet® SL Clear | Yes |
| VisiJet® SL Black | Yes |
| VisiJet® SL Impact | Yes |

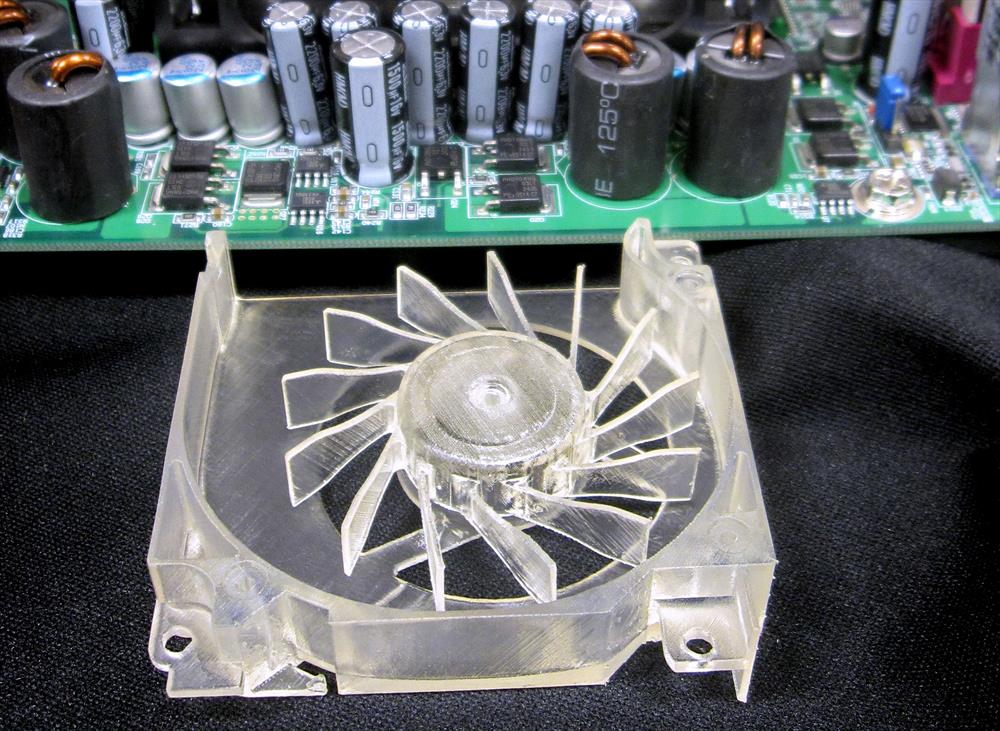

| VisiJet® SL HiTemp | Yes |
| 3D Manage Software | Easy build job set-up, submission and job queue management Automatic part placement and build optimization tools Part stacking and nesting capability Extensive part editing tools Automatic support generation Job statistics reporting |
| MP Auto Software | Automation utility for rapid manufacturing applications. Included only with the ProJet 6000 MP. |
| 3D Manage Operating System | Windows XP Professional, Windows Vista, Windows 7 |
| Optional Accessories | UV Curing Units, Parts Washer and Right Height Table, ProJet® Cart Station |
| Accuracy | 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension Accuracy may vary depending on build parameters, part geometry and size, part orientation and post-processing methods |
