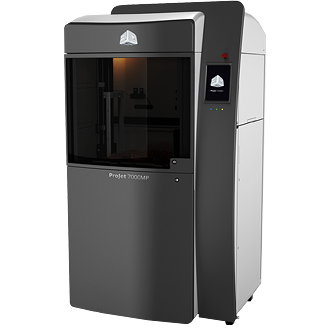

ProJet® 7000 MP

Production 3D Printer
ProJet® 7000 MP

Step up to the gold standard in 3D printing with genuine SLA®

Take advantage of the unrivaled precision, surface quality, range of materials, reliability and speed of Stereolithography at a lower cost with the ProJet® 6000 and 7000 SLA 3D printer series. These highly productive systems offer all the benefits of SLA in a smaller footprint, so you can print parts for prototyping, rapid tooling and end-use with fine feature detail and exceptional mechanical properties, all at a lower per-part cost than other print technologies.

The ProJet 6000 and 7000 print at a resolution equivalent to 4000 DPI*, with more consistent mechanical properties in all three axes than other print technologies. Both systems are available in three models—SD, HD and MP—and in configurations up to 380 × 380 × 250 mm (15 × 15 × 10 in.).

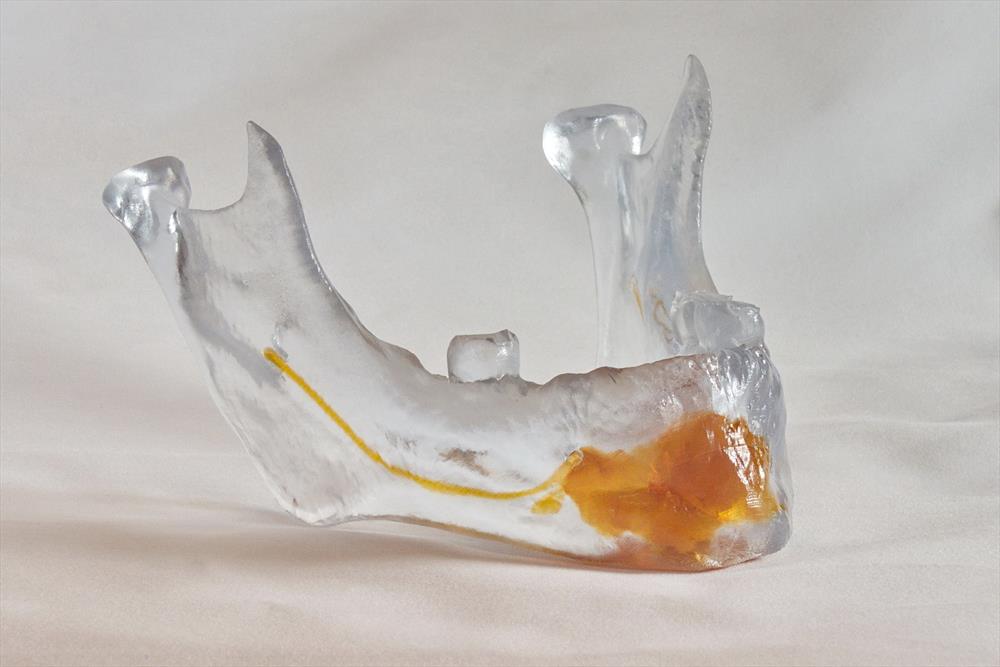

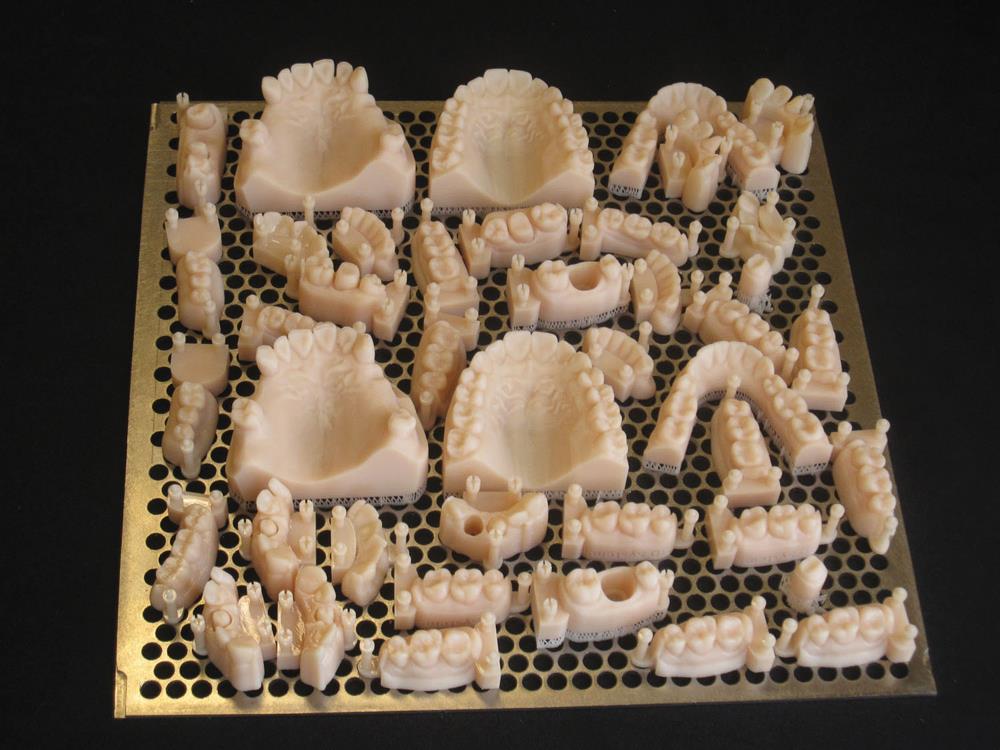

The ProJet 6000 and 7000 use a wide choice of VisiJet® performance-engineered materials that match or exceed traditional plastic properties, including resistance to high temperature, tensile strength and impact strength. VisiJet SL Clear is also USP Class VI certified, making it ideal for medical product manufacturing, especially in mass custom manufacturing projects such as hearing aids and dental applications.

* Equivalent DPI based on laser spot location resolution of 0.00635 mm in 3DS testing

Technical Specifications

Material Packaging Material in clean no drip 2.0 litre cartridges. System auto fills print tray between builds.
Dimensions (W×D×H)
3D Printer Crated 73.5 × 38.5 × 81.5 in (1860 × 982 × 2070 mm)
3D Printer Uncrated 39.0 × 34.0 × 72 in (984 × 854 × 1829 mm)
Weight
3D Printer Crated 800 lb (363 kg)
3D Printer Uncrated 600 lb (272 kg)
Input Data File Formats Supported STL and SLC
Operating Temperature Range 64-82 ºF (18-28 ºC)
Electrical 100-240 VAC, 50/60 Hz, single-phase, 750 W
Certifications CE marked
Network Compatibility Network ready with 10/100 Ethernet interface 4MB
Noise < 65 dBa estimated
Net Build Volume (xyz)
Tall 15 × 15 × 10 in (380 × 380 × 250 mm)
Medium N/A
Short 15 × 15 × 2 in (380 × 380 × 50 mm)
Resolution
HD - 0.125 mm layers Yes
UHD - 0.100 mm layers Yes
XHD - 0.050 mm layers Yes
Materials

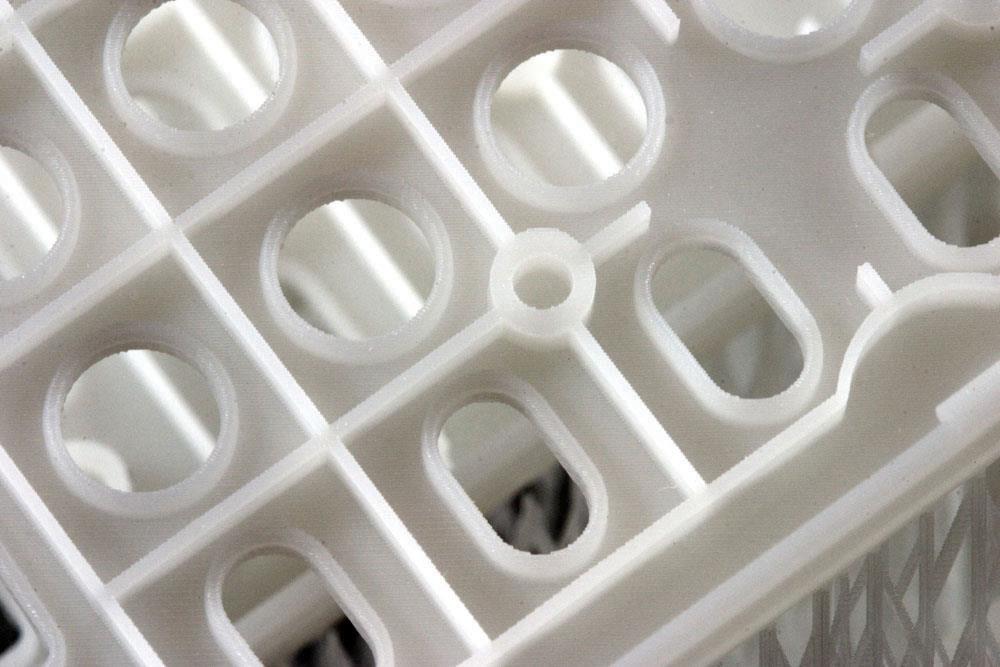

VisiJet® SL Flex Yes

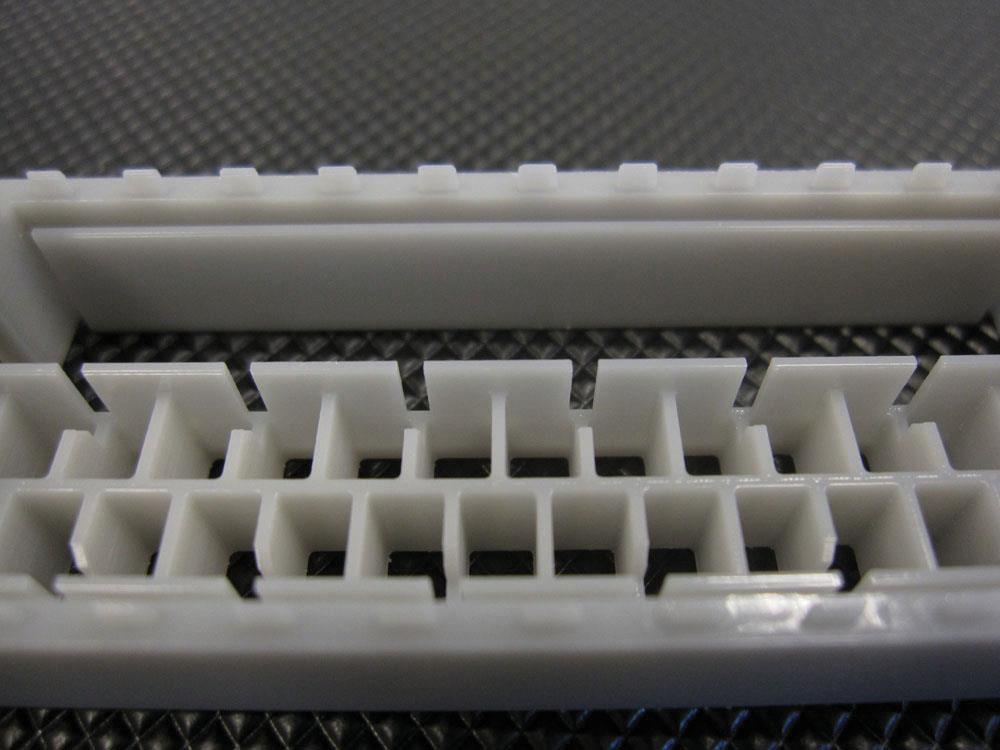

VisiJet® SL Tough Yes
VisiJet® SL Clear Yes
VisiJet® SL Black Yes

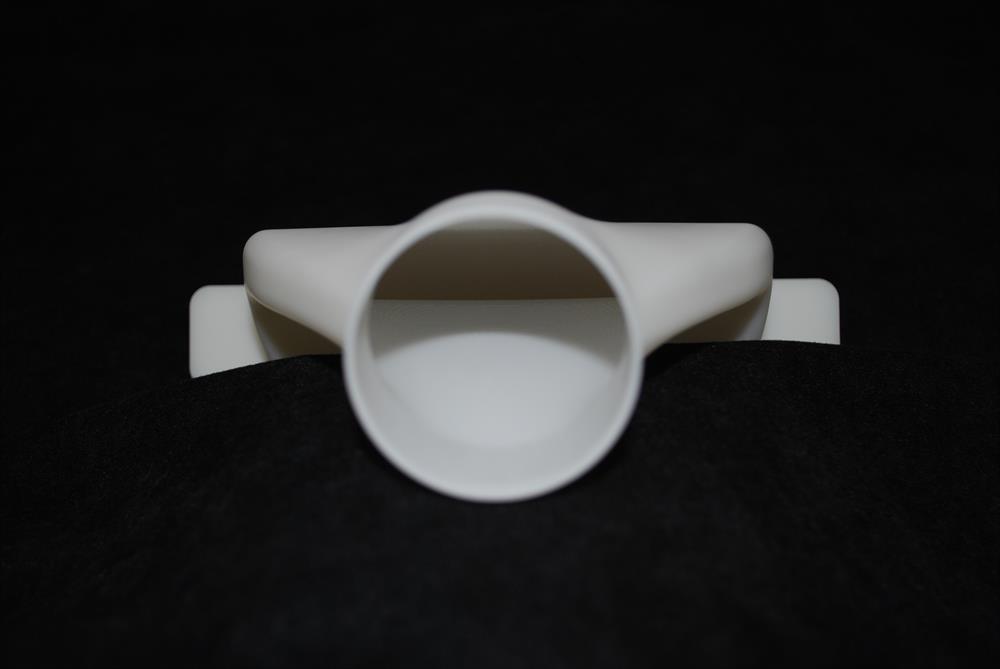

VisiJet® SL Impact Yes
VisiJet® SL HiTemp Yes
VisiJet® SL e-Stone™ Yes
VisiJet® SL Jewel Yes
3D Manage Software Easy build job set-up, submission and job queue management
Automatic part placement and build optimization tools
Part stacking and nesting capability
Extensive part editing tools
Automatic support generation
Job statistics reporting
MP Auto Software Automation utility for rapid manufacturing applications. Included only with the ProJet 7000 MP.
3D Manage Operating System Windows XP Professional, Windows Vista, Windows 7
Optional Accessories UV Curing Units, ProJet® Cart Station
Accuracy 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension Accuracy may vary depending on build parameters, part geometry and size, part orientation and post-processing methods
