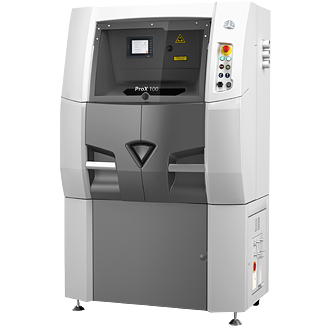

ProX™ 100 Dental

Production 3D Printer
ProX™ 100 Dental

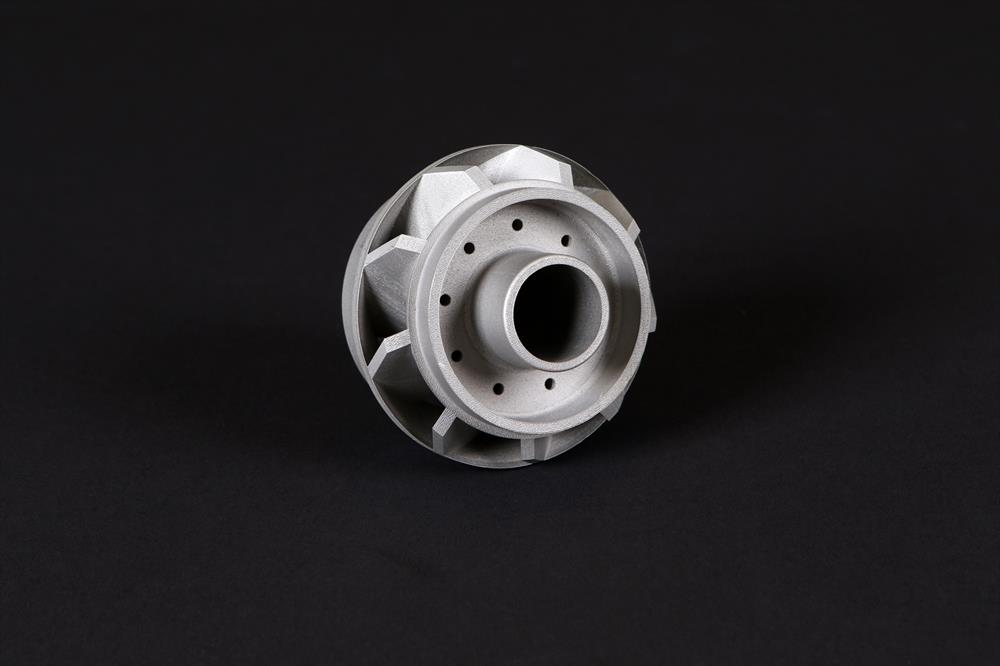

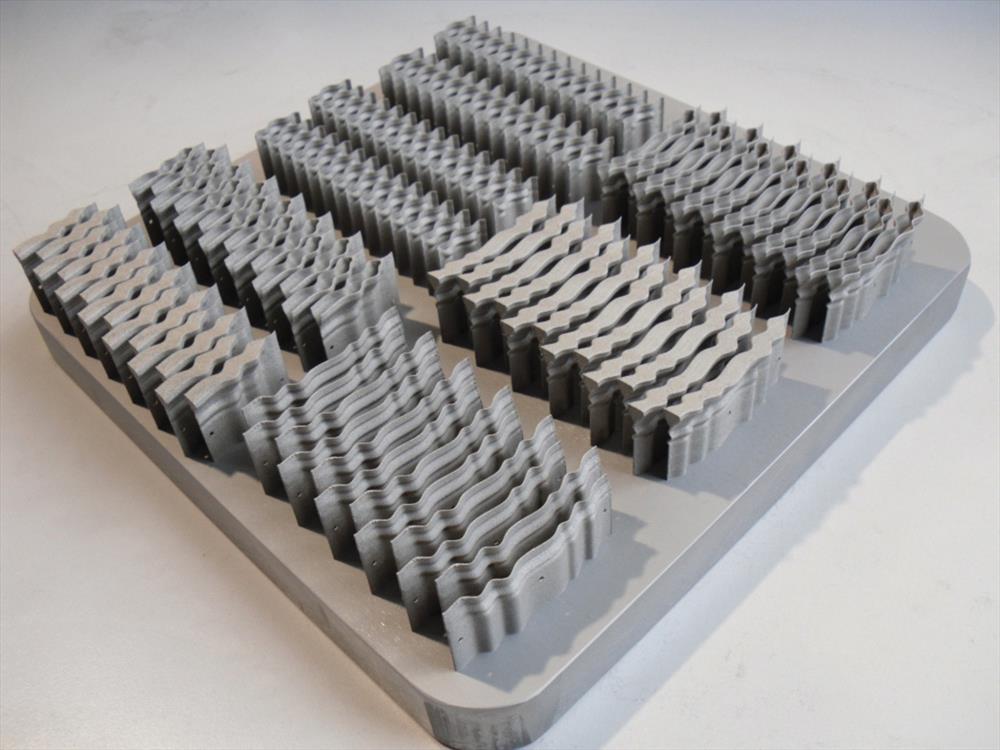

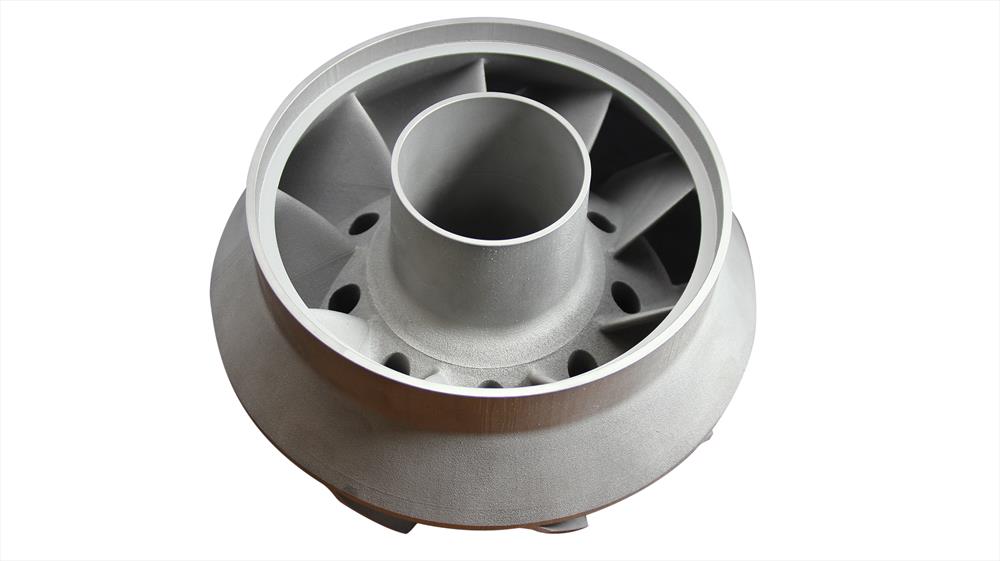

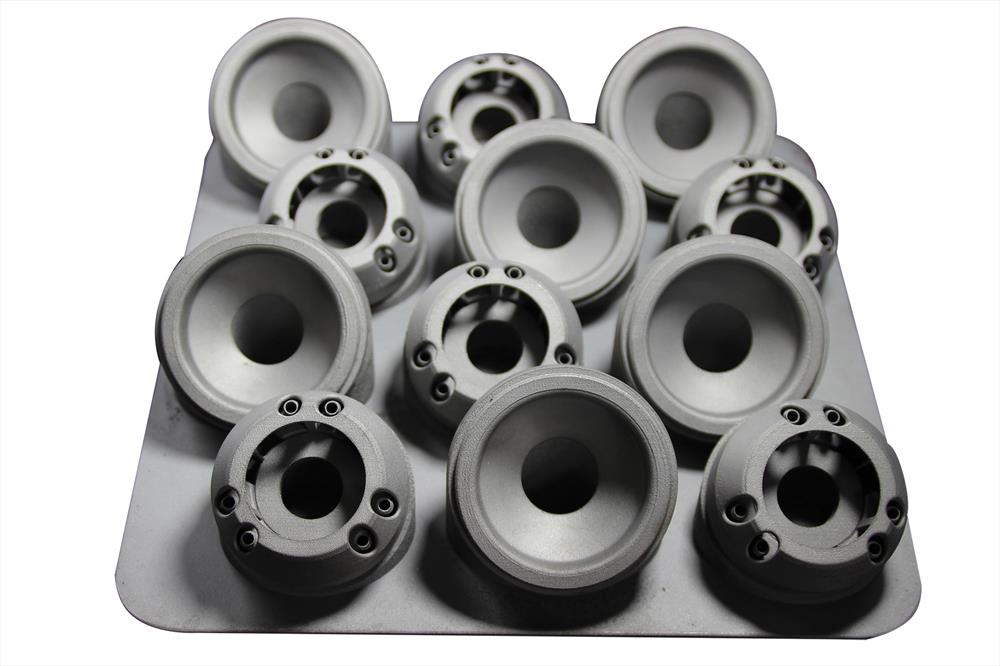

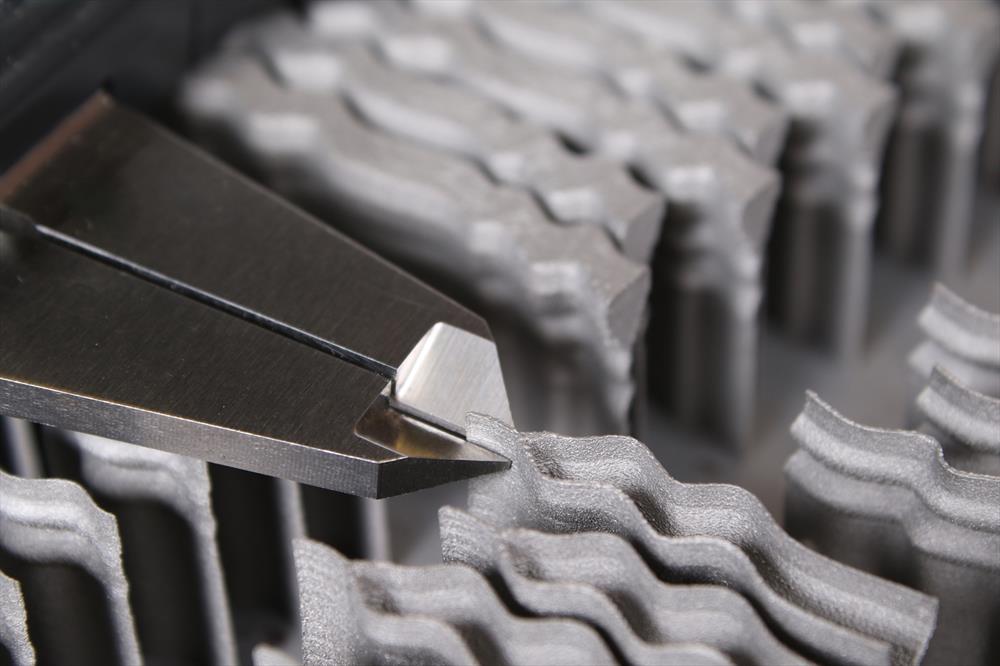

Manufacture Fully, Functional Metal, Parts in Hours

  • Precision laser melting—patented and proven
  • Increased productivity, repeatability and flexibility
  • Access to a wide range of metals and alloys
  • Unmatched design and manufacturing freedom
  • Efficient materials and energy management

Technical Specifications

Dimensions (W×D×H)
3D Printer Uncrated 120 × 77 × 195 cm (48 × 31 × 77 in)
Weight
3D Printer Uncrated 1000 kg (2200 lbs)
Electrical 230 V / 2.7 KVA / single phase
Certifications CE marked
Build envelope capacity (xyz) 100 × 100 × 80 mm (3.94 × 3.94 × 3.15 in)
Metal material choice Stainless steels, tool steels, non-ferrous alloys, super alloys and others
Ceramic material choice Cermet (Al2O3, TiO2) and others
Repeatability x=20 μm, y=20 μm, z=20 μm
Minimum detail resolution x=100 μm, y=100 μm, z=20 μm
Layer thickness range (typical) Adjustable, min 10 μm max 50 μm
Laser Power/Type 50 W/Fiber laser
Laser wavelength 1070 nm
Compressed Air Requirements 6-8 bar
Software tools Processing - Manufacturing
Control software PX Control
Network type and protocol Ethernet 10 /100, RJ-45 Plug
Accessories
Recycling system Optional external system (PX BOX)
Material Handling
Loading system Semiautomatic
Operating system Windows XP, STL, IGES, STEP
