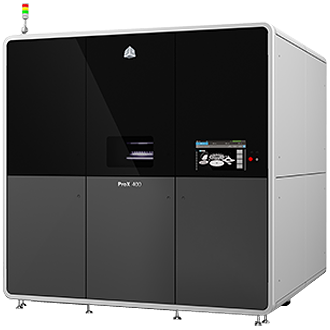

ProX™ 400

Production 3D Printer
ProX™ 400

Manufacture Fully, Functional Metal, Parts in Hours

  • Precision laser melting—patented and proven
  • Increased productivity, repeatability and flexibility
  • Access to a wide range of metals and alloys
  • Unmatched design and manufacturing freedom
  • Efficient materials and energy management

Technical Specifications

Dimensions (W×D×H)
3D Printer Uncrated Manufacturing module:
300 × 300 × 300 cm (118.11 × 118.11 × 118.11 in)
Powder unit:
250 × 250 × 250 cm (98.43 × 98.43 × 98.43 in)
Weight
3D Printer Uncrated Manufacturing module: 13607 kg (30000 lbs)
Powder unit: 4535 kg (10000 lbs)
Electrical 400 V - 480 V / 3 phase + ground
Certifications CE marked
Build envelope capacity (xyz) 500 × 500 × 500 mm (19.69 × 19.69 × 19.69 in)
Metal material choice Stainless steels, tool steels, non-ferrous alloys, super alloys and others
Layer thickness range (typical) min 10 μm max 100 μm
Laser Power/Type 2 fiber lasers / 2 × 500 W (1 KW optional)
Laser wavelength 1070 nm
Compressed Air Requirements 6-8 bar
Software tools Processing - Manufacturing
Control software PX Control
Network type and protocol Ethernet 10 /100, RJ-45 Plug
Accessories
Recycling system Automatic in the powder module
Other accessory Build chamber transfer tool
Operating system Windows XP, STL, IGES, STEP
