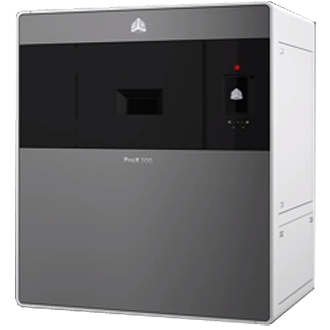

ProX™ 500

Production 3D Printer
ProX™ 500

Manufacture strong, functional parts and assemblies faster than ever

The ProX 500 and 500 Plus are cutting-edge Selective Laser Sintering (SLS®) production 3D printers from 3D Systems that create injection molding-grade parts without expensive tooling. Designed for smooth integration with your manufacturing workflow, these production printers empower you to rethink entire production and supply chain strategies, allowing for advanced product performance, lower total manufacturing costs, and localized on-demand manufacturing.

The ProX 500 prints in DuraForm® ProX plastic material to produce parts with superior mechanical properties, precision, resolution, surface finish and edge definition compared to any other SLS system. The ProX 500 Plus prints in additional materials, including glass filled and aluminum + fiber filled, and offers faster and higher resolution modes. The included state-of-theart Material Quality Center (MQC) module ensures unrivaled material recyclability for efficient, clean and automated production.

Technical Specifications

Dimensions (W×D×H)
3D Printer Uncrated 1744 × 1226 × 2295 cm (68.7 × 48.3 × 90.3 in)
Weight
3D Printer Uncrated 1360 kg (3000 lbs)
Compatible Materials DuraForm ProX
Print Envelope Capacity 381 × 330 × 457 mm (15 × 13 × 18 in)
Powder Layout Variable Speed Counter Rotating Roller
Imaging System ProScan™ DX Digital High Speed
Laser Power/Type 100 W / CO2
Electrical Requirements
Printer 208 VAC/7,5 kVA, 50/60 Hz, 3 PH
MQC 100-240 VAC, 50/60 Hz, 1 PH
Standard Print Mode
Layer thickness Range: 0.08 - 0.15 mm (0.003 - 0.006 in)
Typical: 0.10 mm (0.004 in)
Volume build rate 2 l/h
High-resolution print mode
Scanning speed N/A
Layer thickness N/A
Volume build rate N/A
High-speed print mode
Scanning speed N/A
Layer thickness N/A
Volume build rate N/A
Accessories ProX Material Quality Center (MQC) for automated material handling and recycling
