Cube 3

Cube 3D printn. Real. Easy
Cube 3

Cube 3D printn. Real. Easy.

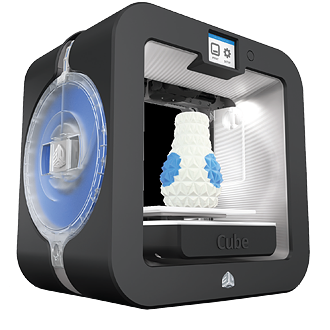

The Cube offers easy to use dual color and dual material high-resolution 3D printing for an affordable price. Loading material has never been easier or more convenient with the introduction of the new non-clog technology and moisture-lock cartridges. With every new cartridge comes a brand new preloaded filament jet. Combined with the auto-leveling print pad and beautiful 70-micron high-resolution capability, the Cube prints effortlessly, every time.

Competitive advantages

  • The only true plug-and-play 3D printer can be set up in under 15 minutes right out of the box
  • IEC certified safe for use by kids in schools or at home
  • Snap-in smart cartridges with integrated nozzles, pre-loaded filament, and built-in stepper motors reduce clocking and make setup easy
  • Auto leveling and calibration features ensure beautiful prints every time
  • Print with up to two different colors and materials (ABS or PLA) simultaneously with the Cube’s dual cartridge system
  • 70-micron high-resolution capability
  • Enhance your Cube experience with the Cubify App. Easily access your library of 3D files, access free and exclusive content, and print straight from your mobile or desktop device

Technical Specifications

Material Tough recyclable ABS plastic or compostable PLA plastic
Operating Envelope 28.9(w) × 20.6(h) × 15.8(d) inches / 73.4(w) × 52.3(h) × 40.1(d) cm
Wireless Print over WiFi with the Cubify app for Mac OS X and Windows Learn more
Wired Transfer print files with the USB stick (supplied with the Cube)
Mobile devices Print direct with the Cubify app for iOS and Android (available soon for free download)
Technology Plastic Jet Printing (PJP)
Print jets Dual jets
Maximum design size 6 × 6 × 6 inches / 15.25 × 15.25 × 15.25 cm
Supports Fully Automated, easy to peel off
Dual cartridges Each cartridge prints 13 to 14 mid-sized creations
Room temperature 16–29 °C (60–85 °F)
Non-condensing relative humidity 30–60 %
Description Comes with software to create cube readable files
Windows requirements Cube software runs on 32 and 64-bit Operating Systems on Windows 7 and above
Minimum screen resolution: 1024 × 768
Minimum IE version: 10 and above
Mac OSX requirements Cube software runs on Mac OSX 10.9 and above
Minimum screen resolution: 1400 × 900
Android Phone/tablets requirements Cubify App is available in the Play Store for your Android phones/tablets running Android 4.0 (Ice Cream Sandwich) and above
iOS requirements Cubify App is available in the App Store for your iPhone running iOS 7 and above
Minimum hardware requirements Processor: Multi-core processor - 2GHz or faster per core System System RAM: 2 GB Open GL for mobile platforms:Open GL ES 2.0 and above Open GL for desktops:OpenGL 3.0 and above
Dimensions (W×D×H)
3D Printer Crated 26.3(w) × 20(h) × 14.5(d) inches / 66.8(w) × 50.8(h) × 36.8(d) cm
3D Printer Uncrated 13.2(w) × 13.5(h) × 9.5(d) inches / 33.5(w) × 34.3(h) × 24.1(d) cm*
Weight
3D Printer Crated 22 lbs / 10 kg
3D Printer Uncrated 17 lbs / 7.7 kg*
* with cartridge
