CubePro Duo

3D Printing. Real. Pro

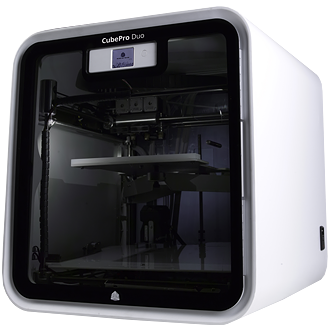

CubePro Duo

3D Printing. Real. Pro.

Controlled print environment

A controlled process environment ensures improved accuracy and reliability of print for effortless, professional quality every time for your largest ABS plastic prints. Automated settings ensure home-safe printing in your mancave, on your workbench and at your desktop.

Print big, print accurate

The CubePro features the largest-in-class build platform with ultra high-resolution. With prints 2.5 times larger than any other desktop prosumer and hobbyist printer (11.2" × 10.6" × 9.06" or 285.4 mm × 270.4 mm × 230 mm) with ultra high-resolution settings of 70-micron thin print layers, professional quality printing has never been so large or easy.

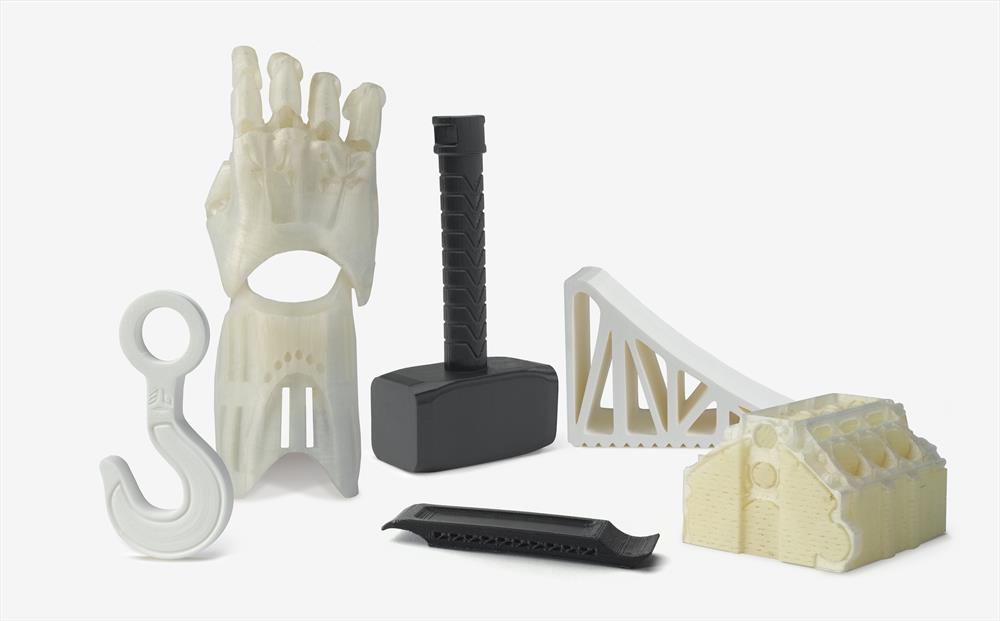

New materials, limitless possibilities

Printing with complexity has never been easier. Break beyond boundaries set by unachievable overhangs and the laws of gravity, and enter the possibilities of intricate patters, degrees of freedom and suspension in space. Create functional prototype models or make end-use parts for your engineering applications.

Strong, fast & long-lasting

Guaranteed faster, more accurate prints with stabilized print mechanics and easy feed cartridges for prolonged material life.

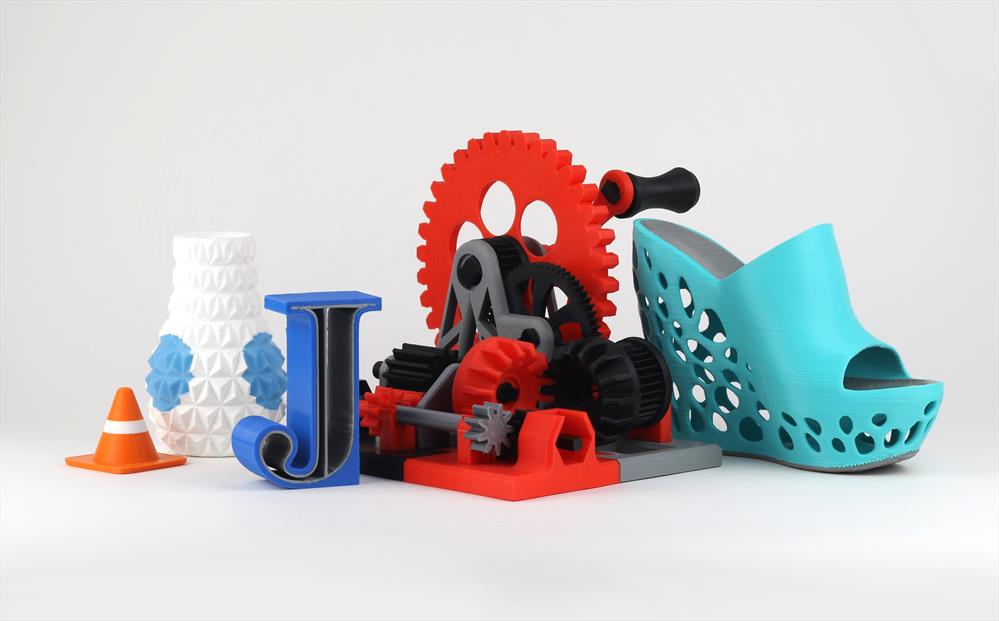

Triple color + three materials = thousands of options

Get more expressive with 3D printing in up to 3 simultaneous colors with 3 material options. Select from over 24 vibrant colors for more unique combinations.

Connect better to experience better

Connect conveniently with an easy to use color touchscreen display and WiFi capability.

Technical Specifications

Layer thickness 70 microns, 200 microns and 300 microns for fast mode. Available for all three models.
Maximum build size 9.56(w) × 9.06(h) × 10.6(d) inches 24.29(w) × 23(h) × 27.04(d) cm
Z Axis resolution 0.100 mm (0.004" / 100 microns)
Print tolerance X and Y axis ± 1.2 % dimension or ± 0.2 mm (0.008" / 200 microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent.
Print speed extruded volume Maximum 15 mm (9/16") per second and polymer dependent
Power requirements 100 - 240 V AC
Maximum operating temperature at extruder tip 536 °F / 280 °C
Support material PLA / ABS / dissolvable natural PLA
Support removal Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option).
Software Description

All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine. Other features and uses of CubePro software include:

  • Clear, familiar and easy-to-use interface
  • Scaling, rotating and movement of parts on a simulated print bed
  • Proven default settings for all CubePro 3D printers
  • Ability to create custom profiles as needed
  • Imperial/metric conversion available
  • Built-in STL file verification
  • Combined part and tool path viewer
  • Profiles for multiple material/support materials
Windows requirements

32 or 64 bit operating systems:

  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework
Mac OSX requirements Mac 10.9 and up
Minimum hardware requirements Processor: Multi-core processor - 2 GHz or faster per core
System RAM: 2GB minimum
Screen resolution: 1024 × 768
Dimensions (W×D×H)
3D Printer Uncrated 22.75(w) × 23.25(h) × 22.75(d) inches 57.8(w) × 59.1(h) × 57.8(d) cm
3D Printer Uncrated 94.3 lb / 43 kg
