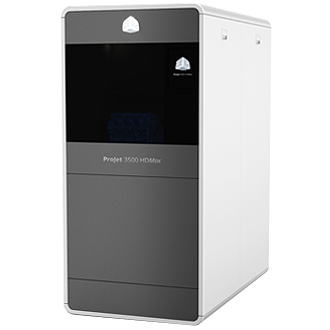

ProJet® 3500 HDMax

Productive, high-capacity ProJet® 3500 professional printers
ProJet® 3500 HDMax

Easy connectivity and high productivity with high resolution and accuracy

The high-capacity ProJet 3500 HDMax offers greater productivity, especially with the high-speed printing mode, and larger high-definition prints for the production of functional plastic parts. Users also benefit from increased throughput, part size, feature detail and quality only possible with ProJet printers.

Technical Specifications

Build Materials VisiJet M3-X
VisiJet M3 Black
VisiJet M3 Crystal
VisiJet M3 Proplast
VisiJet M3 Navy
VisiJet M3 Techplast
VisiJet M3 Procast
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows XP Professional, Windows Vista, Windows 7
Resolution (xyz)
HS Mode 375 × 375 × 790 DPI (xyz); 32μ layers
Client Hardware Recommendation 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Net Build Volume (xyz)
HD Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
UHD Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
Resolution (xyz)
HD Mode 375 × 375 × 790 DPI (xyz); 32μ layers
Support Material VisiJet S300
Printing Modes HD - High Definition
HS - High Speed
UHD - Ultra High Definition
XHD - Xtreme High Definition
Net Build Volume (xyz)
HS Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
XHD Mode 750 × 750 × 1600 DPI (xyz); 16μ layers
Accuracy (typical) 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension.
Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
5-Year Printhead Warranty Optional
ProJet® Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
Material Packaging
Build and support materials In clean 4.41 lbs (2 kg) bottles (machine holds up to 2 with auto-switching)
Dimensions (W×D×H)
3D Printer Crated 32.5 × 56.25 × 68.5 in
(826 × 1429 × 1740 mm)
3D Printer Uncrated 29.5 × 47 × 59.5 in
(749 × 1194 × 1511 mm)
Weight
3D Printer Crated 955 lbs, 434 kg
3D Printer Uncrated 711 lbs, 323 kg
Input Data File Formats Supported STL and SLC
Operating Temperature Range 64-82 ºF (18-28 ºC)
Electrical 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
* Requires small external transformer supplied by 3D Systems in the provided country kit.
