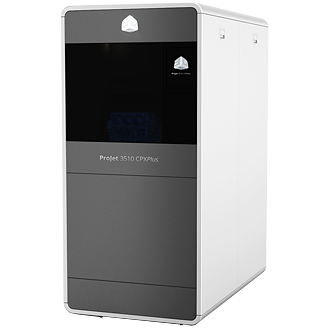

ProJet™ 3510 CPX plus

Productive, high-capacity ProJet® 3500 professional printers
ProJet™ 3510 CPX plus

Easy connectivity and high productivity with high resolution and accuracy

The ProJet 3510 CPX Plus offers the flexibility to choose between four resolution modes to mass produce 100  RealWax casting patterns, supporting unlimited applications capabilities. Casting yields from ProJet 3500 patterns mirror those from standard casting waxes. Just connect to the printer and you can produce extremely fine-featured patterns with a greater level of output.

Technical Specifications

Build Materials VisiJet M3 Hi-Cast
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows XP Professional, Windows Vista, Windows 7
Client Hardware Recommendation 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Net Build Volume (xyz)
HD Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
UHD Mode 8 × 7 × 6 “ (203 × 178 × 152 mm)
Resolution (xyz)
HD Mode 375 × 375 × 775 DPI (xyz); 33μ layers
UHD Mode 694 × 750 × 1300 DPI (xyz); 16μ layers
Printing Modes HD - High Definition
HDHiQ - High Definition/High Quality
UHD - Ultra High Definition
XHD - Xtreme High Definition
Net Build Volume (xyz)
XHD Mode 8 × 7 × 6 “ (203 × 178 × 152 mm)
Accuracy (typical) 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
ProJet® Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
HDHiQ Mode 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm)
Resolution (xyz)
HDHiQ Mode 375 × 375 × 775 DPI (xyz); 33μ layers
Material Packaging
Build materials In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching)
Support materials In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching)
Dimensions (W×D×H)
3D Printer Crated 32.5 × 56.25 × 68.5 “
(826 × 1429 × 1740 mm)
3D Printer Uncrated 29.5 × 47 × 59.5 “
(749 × 1194 × 1511 mm)
Weight
3D Printer Crated 955 lbs, 434 kg
Input Data File Formats Supported STL and SLC
Operating Temperature Range 64-82 ºF (18-28 ºC)
Electrical 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
