ProJet® 1200

Micro-SLA Low-Cost Professional, Desktop and Jewelry 3D Printer
ProJet® 1200

Micro-SLA Low-Cost Professional 3D Printer

The affordable ProJet® 1200 3D printer from 3D Systems puts the high precisio and exceptionally fine feature detail of a professional 3D printer right on your desk for under $5,000. It’s perfect for producing strong, precise micro parts for figurines; scale models of aircraft, cars, and trains; fashion accessories and décor.

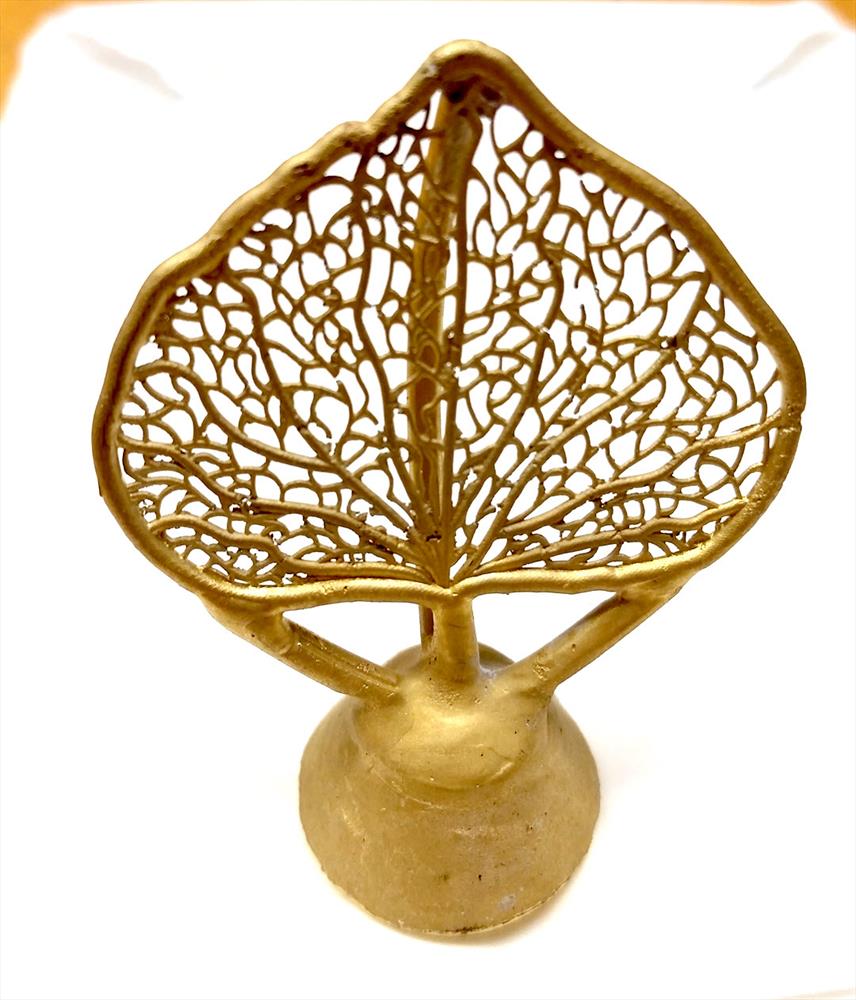

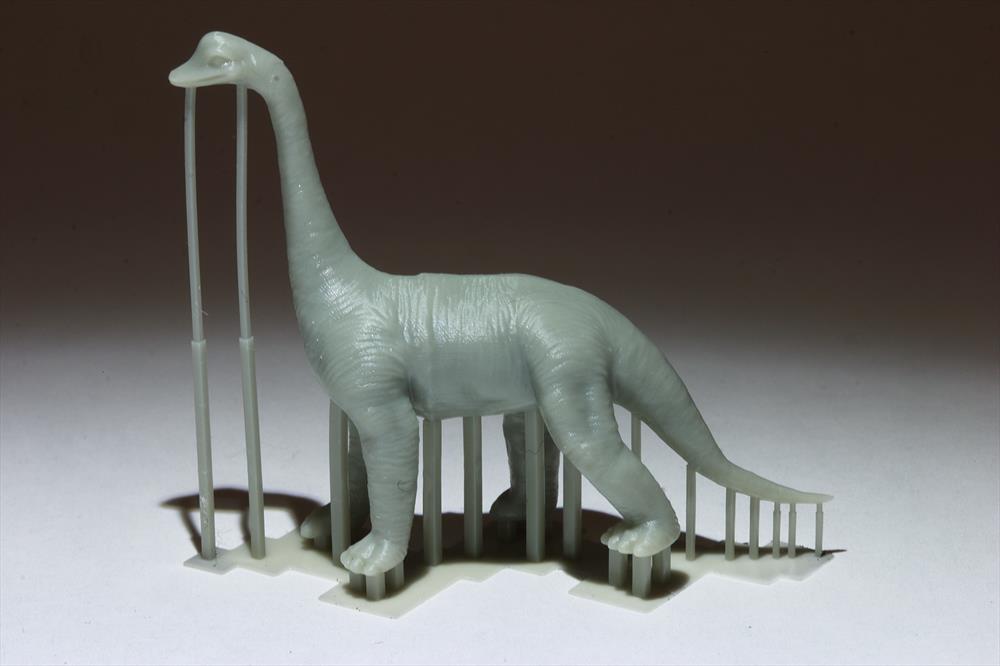

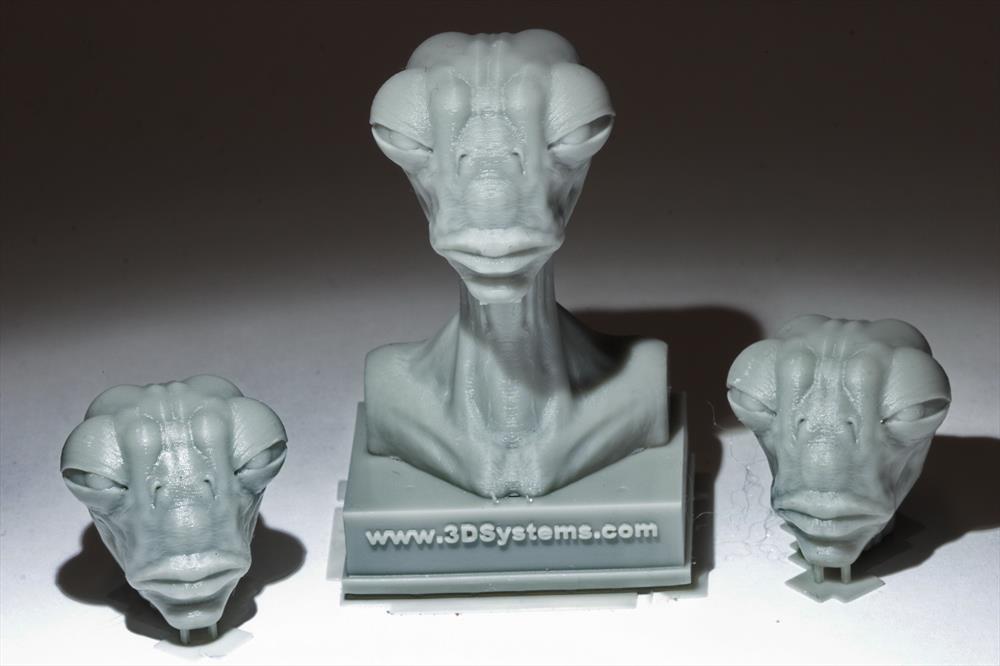

Pop in your choice of VisiJet® FTX material cartridges and get creative. FTX Gray parts are a primer-gray and ideal for painting. FTX Clear material projects a hint of iridescence for shimmery, clear parts. For artisans creating small cast sculptures, FTX Cast material lets you print sacrificial wax patterns for casting in any material you’d like. You can even print in sparkly materials with gold and silver metallic appearance.

The ProJet 1200 is compact and easy to use. Everything you need is built right into the printer, including the part curing station. The self-contained VisiJet FTX cartridges mean you don’t have to measure and pour materials into the printer. Convenient, simple and affordable, the ProJet 1200 belongs on your desk.

Technical Specifications

Net Build Volume (xyz) 43 × 27 × 150 mm (1.69 × 1.06 × 5.90 in)
Native Resolution (xy) 56 micron (effective 585 dpi*)
Layer Thickness 0.03 mm (0.0012 in)
Vertical Build Speed Up to 14 mm/hour (0.55 in/hour)
Post-processing Built-in UV Curing Station
3DSPRINT Software
PC requirements Easy, fast print prep and support generation Windows® 7 or 8, 64 bit 2.0 GHz Intel or AMD CPU, 3.0 GHz recommended 4 GB RAM minimum, 8 GB recommended OpenGL 2.1 and GLSL 1.20 enabled graphics card 1280 × 960 or higher resolution 30 GB available HDD space for cache
File Input STL
Electrical
Input 100-240 VAC, 50/60 Hz, 2.0 A
Output 24 V DC, 3.75 A, 90 W max
Material VisiJet® FTX Green, FTX Cast, FTX Gray, FTX Clear,FTX Silver, FTX Gold
Material Packaging All-in-one cartridge with built-in print window
Dimensions (W×D×H)
3D Printer Crated 381 × 381 × 560 mm (15 × 15 × 22 in)
3D Printer Uncrated 230 × 230 × 362 mm (9 × 9 × 14 in)
Weight
3D Printer Crated 12 kg (25 lbs)
3D Printer Uncrated 9 kg (20 lbs)
* Enhanced LED DLP technology provides an effective resolution of 585 DPI.
