Large build size for your high-resolution plastic parts

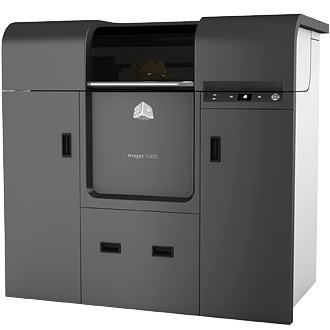

Featuring the largest build size in 3D Systems’ line of high-definition MultiJet 3D printers, the ProJet 5000 professional printer is designed to deliver maximum productivity and absolute design freedom in the factory or office. A unique combination of size, precision and ease-of-use makes the ProJet 5000 ideal for consistent, high-resolution parts of all sizes. This high-throughput workhorse can even print two times faster using the high-speed mode.

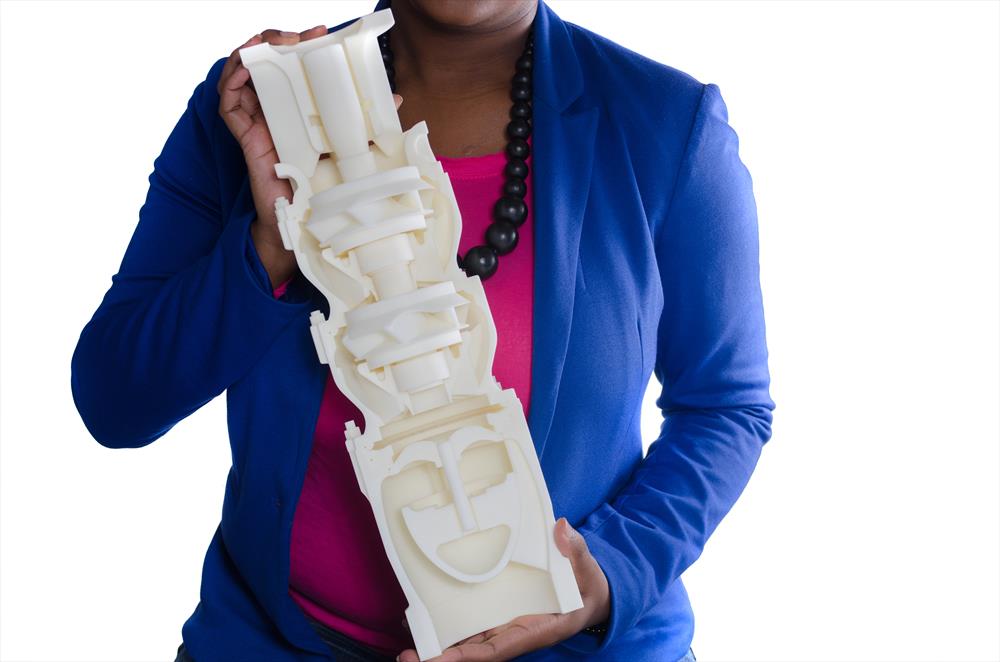

Choose from 3D Systems’ line of VisiJet® M5 plastic materials, which includes high-elongation, durable plastic; high-strength PP-like black plastic; or stiff, brilliant white plastic with high-temperature resistance. Whatever your material choice, the ProJet 5000 has the unique ability to produce large or small injection molded-like plastic parts with superior feature quality and detail.

Technical Specifications

Net Build Volume (xyz) 21 × 15 × 11.8 inches (533.4 × 381 × 299.72 mm)
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Client Operating System Windows® XP Professional, Windows® Vista or Windows® 7
Resolution (xyz)
HS Mode 375 × 375 × 395 DPI; 64μ (0.0025 in) layers
5 year printhead warranty Yes
ProJet Accelerator Software Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools. Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools.
Client Hardware Recommendation 1.8 GHz with 1 GB RAM (OpenGL support 64 MB video RAM) or higher
HD Mode 375 × 375 × 790 DPI; 32μ (0.0012 in) layers
UHD Mode 750 × 750 × 890 DPI; 32μ (0.0011 in) layers
Material Packaging In clean 2.0 kg cartridges. Printer can hold up to eight cartridges with additional material bays (optional)
Dimensions (W×D×H)
3D Printer Crated 72 × 45.5 × 78 in (1828 × 1155 × 1981 mm)
3D Printer Uncrated 60.3 × 35.7 × 57.1 in (1531 × 908 × 1450 mm)
Weight
3D Printer Crated 1555 lbs (708 kg)*
3D Printer Uncrated 1180 lbs (538 kg)*
Input Data File Formats Supported STL, SLC
Operating Temperature Range 18 - 28 °C (64-82 °F)
Electrical 115-240 VAC, 50/60 Hz, single-phase, 1200 W
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)dBa estimated (at medium fan setting)
Accuracy 0.001-0.002 inch (0.025-0.05 mm) per inch of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
* Weight based on standard configuration with 4 MDMs (material delivery modules). Add 60 lb (28 kg) for each additional pair of MDMs.
