ProJet® 3510 DPPro

Productive, high-capacity ProJet® 3510 DPPro dental printer

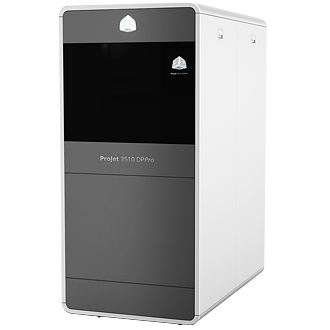

ProJet® 3510 DPPro

Precise wax-up and dental model production at the speed of 3D printing

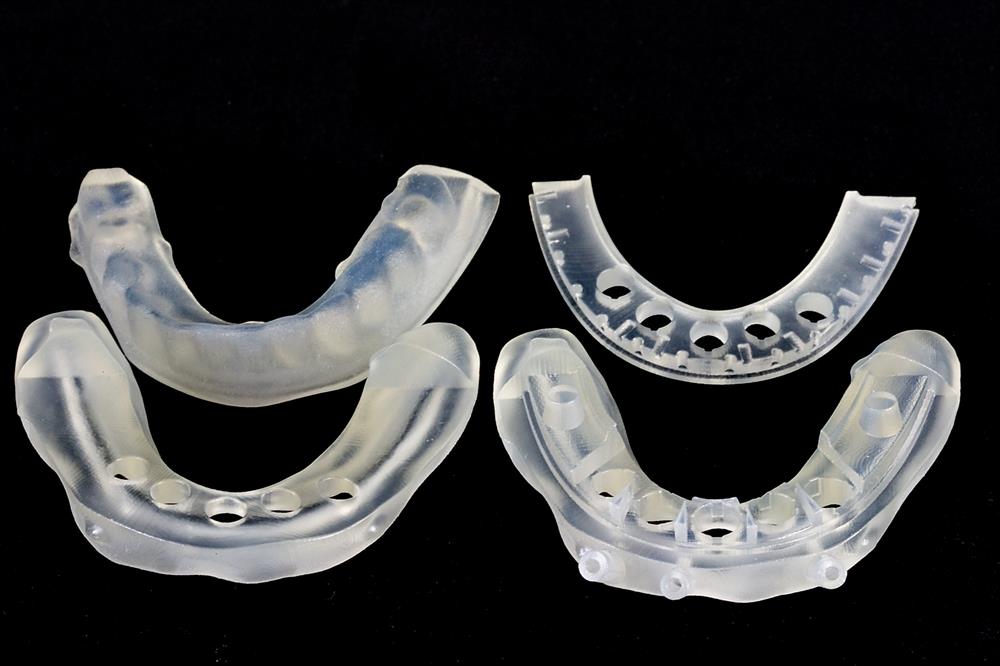

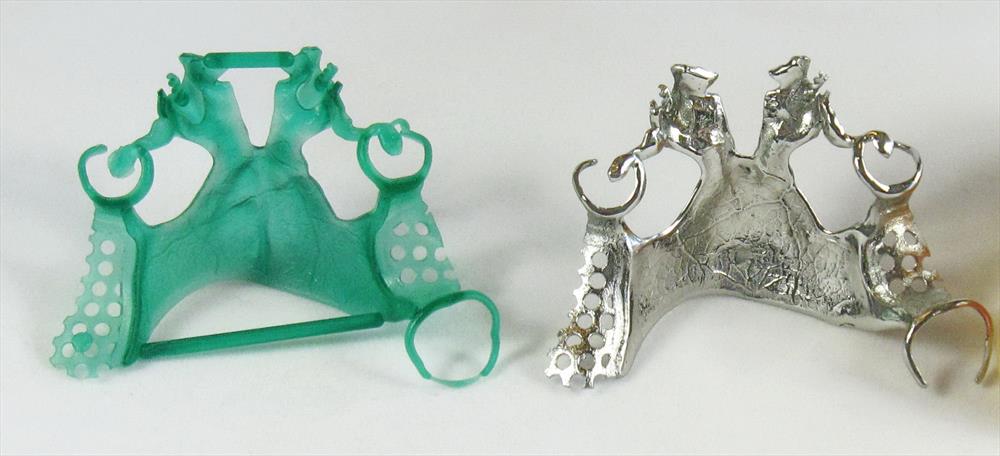

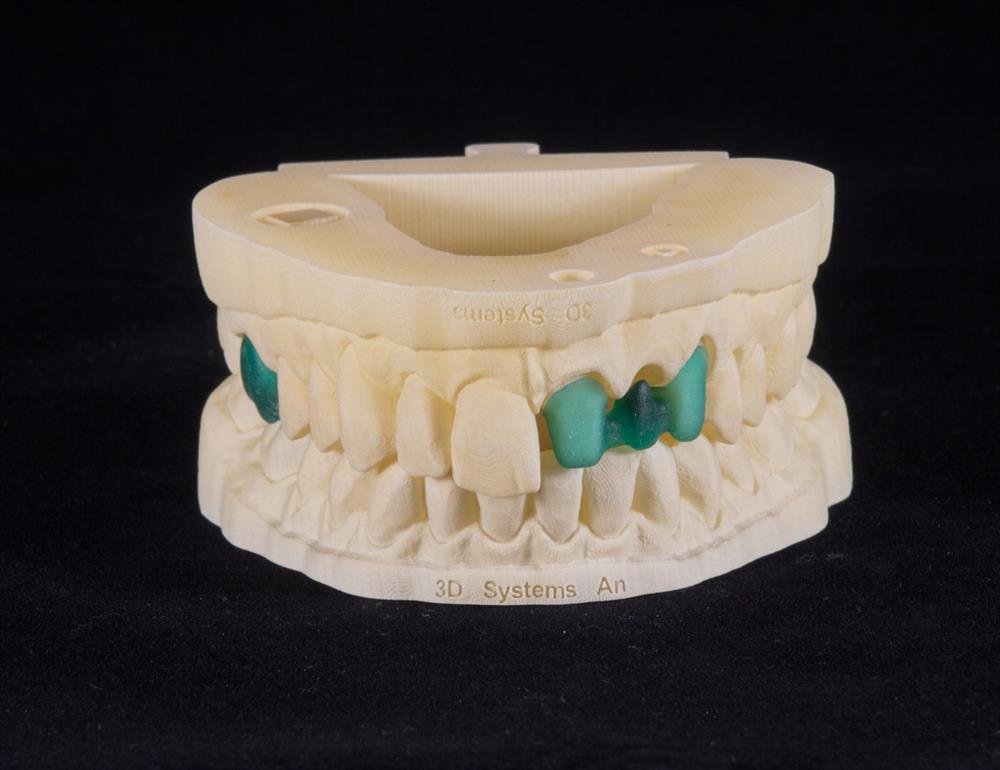

Engineered specifically for dental lab use, the highcapacity ProJet® 3510 DPPro 3D printer will take your productivity to the next level. With round-the-clock operation and same-day cycle times, this dental CAD/ CAM printer dramatically reduces lead times and costs. The ProJet® 3510 DPPro quickly prints accurate wax-ups for the production of prosthetic devices, manufactures precision working models in a stonelike material, and produces drill guides in durable plastic material.

Using 3D Systems’ MultiJet Printing (MJP) technology, this printer provides high-quality customized models for immediate casting, pressing, patient education and testing. With a choice of materials that fit into existing production workflows, including USP Class VI-capable VisiJet® Stoneplast, the ProJet® 3510 DPPro makes accepted production methods faster, easier and more effective. The large build volume means more wax-ups and models in less time, and the high accuracy means better results and happier clients. Efficient material use, low-maintenance operation and a five-year print head warranty means you can print with confidence and keep costs down.

Technical Specifications

Net Build Volume (xyz) 11.75 × 7.3 × 8 inches (298 × 185 × 203 mm)
E-mail Notice Capability Yes
Tablet/Smartphone Connectivity Yes
Print3D App Remote monitoring and control from tablet, computers and smartphones
Client Operating System Windows XP Professional, Windows Vista, Windows 7
5 year printhead warranty Standard
Client Hardware Recommendation 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Resolution (xyz)
UHD Mode 750 × 750 × 890 DPI (xyz); 29μ layers
Support Material VisiJet S300
Printing Modes UHD - Ultra High Definition

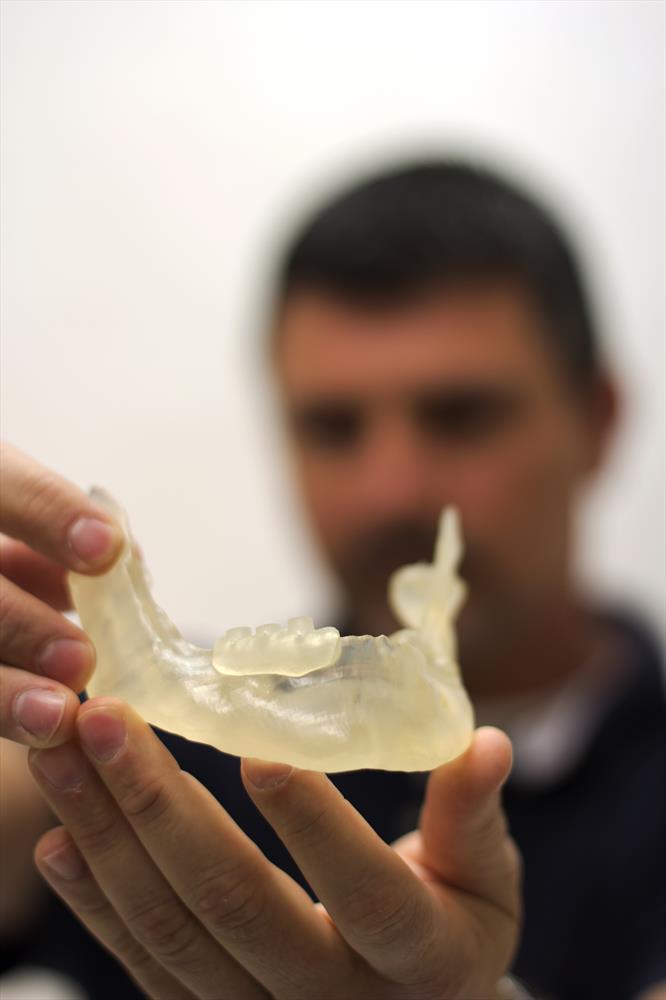

HDX - High Definition Smooth (drill guides, jaw models and orthodontic thermoforming models)

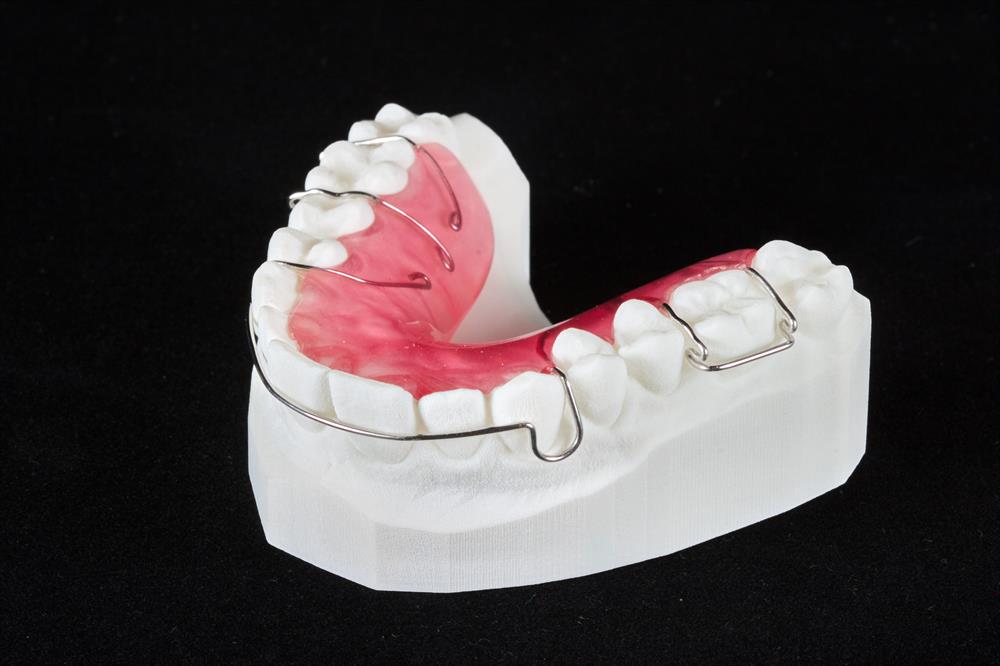

HDP - High Definition Plaster (plaster-like appearance for crown and bridge, partial denture and orthodontic models)
Accuracy (typical) 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
ProJet® Accelerator Software Easy build job set-up, submission and job queue management
Automatic part placement and build optimization tools
Part stacking and nesting capability
Extensive part editing tools
Automatic support generation
Job statistics reporti
Material Packaging
Build and support materials In clean 4.41 lbs (2 kg) bottles (machine holds up to 2 with auto-switching)
Resolution (xyz)
HDX Mode 375 × 375 × 790 DPI (xyz); 32μ layers
HDP Mode 375 × 375 × 790 DPI (xyz); 32μ layers
Build Materials
UHD Mode VisiJet M3 Dentcast
HDX Mode VisiJet M3 Dentcast, VisiJet M3 Stoneplast, VisiJet M3 PearlStone
HDP Mode VisiJet M3 Dentcast, VisiJet M3 Stoneplast, VisiJet M3 PearlStone
Dimensions (W×D×H)
3D Printer Crated 32.5 × 56.25 × 68.5 inches (826 x 1429 x 1740 mm)
3D Printer Uncrated 29.5 × 47 × 59.5 inches (749 x 1194 x 1511 mm)
Weight
3D Printer Crated 955 lbs (434 kg)
3D Printer Uncrated 711 lbs (323 kg)
Input Data File Formats Supported STL and SLC
Operating Temperature Range 64-82 °F (18-28 °C)
Electrical 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A
Certifications CE
Network Compatibility Network ready with 10/100 Ethernet interface
Noise < 65 dBa estimated (at medium fan setting)
* Requires small external transformer supplied by 3D Systems in the provided country kit.
